Supplier of Carbon Steel ASTM A403 Butt Weld Fitting
Carbon Steel Buttweld Fittings are engineered for superior strength, durability, and reliability across various industrial applications. Manufactured using high-grade carbon steel, these fittings are known for their excellent resistance to pressure, wear, and corrosion, making them suitable for demanding environments such as oil & gas, power generation, petrochemical, refinery, and water treatment industries.
At Vardhman Steel Overseas, we supply a comprehensive range of Carbon Steel Pipe Fittings in compliance with ANSI B16.9 and other international standards. These fittings are available in seamless and welded forms, covering sizes from ½” to 48” and offered in schedules ranging from SCH 10 to SCH XXS. Whether it's for high-pressure pipelines or low-temperature vessels, our fittings are crafted to ensure optimal flow control and leak-free operation.
We offer fittings in various grades like ASTM A234 WPB, WPC, WP11, and WP22, with Low Temperature Carbon Steel (LTCS) options such as ASTM A420 WPL6 for cryogenic and sub-zero applications. Each product is manufactured with precision and subjected to rigorous quality checks to meet client expectations across the globe.

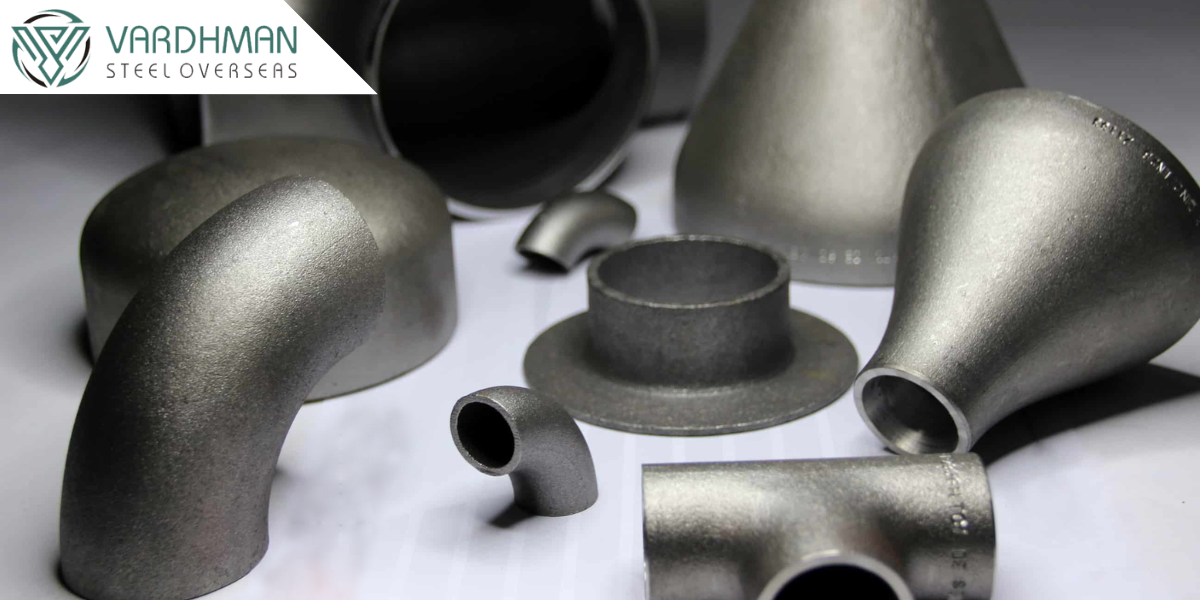

Our inventory includes elbows (90°, 45°, LR/SR), tees, reducers, caps, crosses, stub ends, and customized fittings, ensuring a complete solution for your piping system. These fittings offer high weldability and formability, adapting seamlessly to fabrication processes without compromising structural integrity.
As a trusted manufacturer, stockist, and exporter, we ensure fast delivery, competitive pricing, and technical support tailored to your project needs. Choose Vardhman Steel Overseas for high-performance Carbon Steel Buttweld Fittings trusted by engineers and industries worldwide.
Carbon Steel Buttweld Fitting Specification
| Specification | Details / Grades | Available Types |
|---|---|---|
| Standard | ASTM A234 |
|
| Dimensions | ASME B16.9, B16.28, MSS-SP-75 | |
| Size (Seamless) | ½” – 24” | |
| Size (Welded) | ½” – 72” | |
| Size Range | ½” NB to 48” NB in Sch 10, 20, 40, 80, 120, 160, XXS | |
| Thickness | SCH10, SCH20, SCH40, SCH80, SCH120, SCH160, STD, XS, XXS | |
| Connection | Welding | |
| Type | DN15 – DN1800 | |
| Manufacturing Process | Hot Forming, Cold Forming, Forged, Seamless, Welded | |
| Test Certificates | EN 10204/3.1B, Raw Material Certificate, 100% Radiography, Third Party Inspection | |
| Specialized In | Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bends | |
| Grades | ASTM A105, ASTM A234 WPB, ASTM A420 WPL6, ASTM A860 WPHY 42 / 52 / 60 / 65 | |
| EIL & IBR Approved Fittings | ||
Types of Buttweld Fittings
Explore our precision-engineered Buttweld Fittings designed for leak-proof and high-strength piping systems.

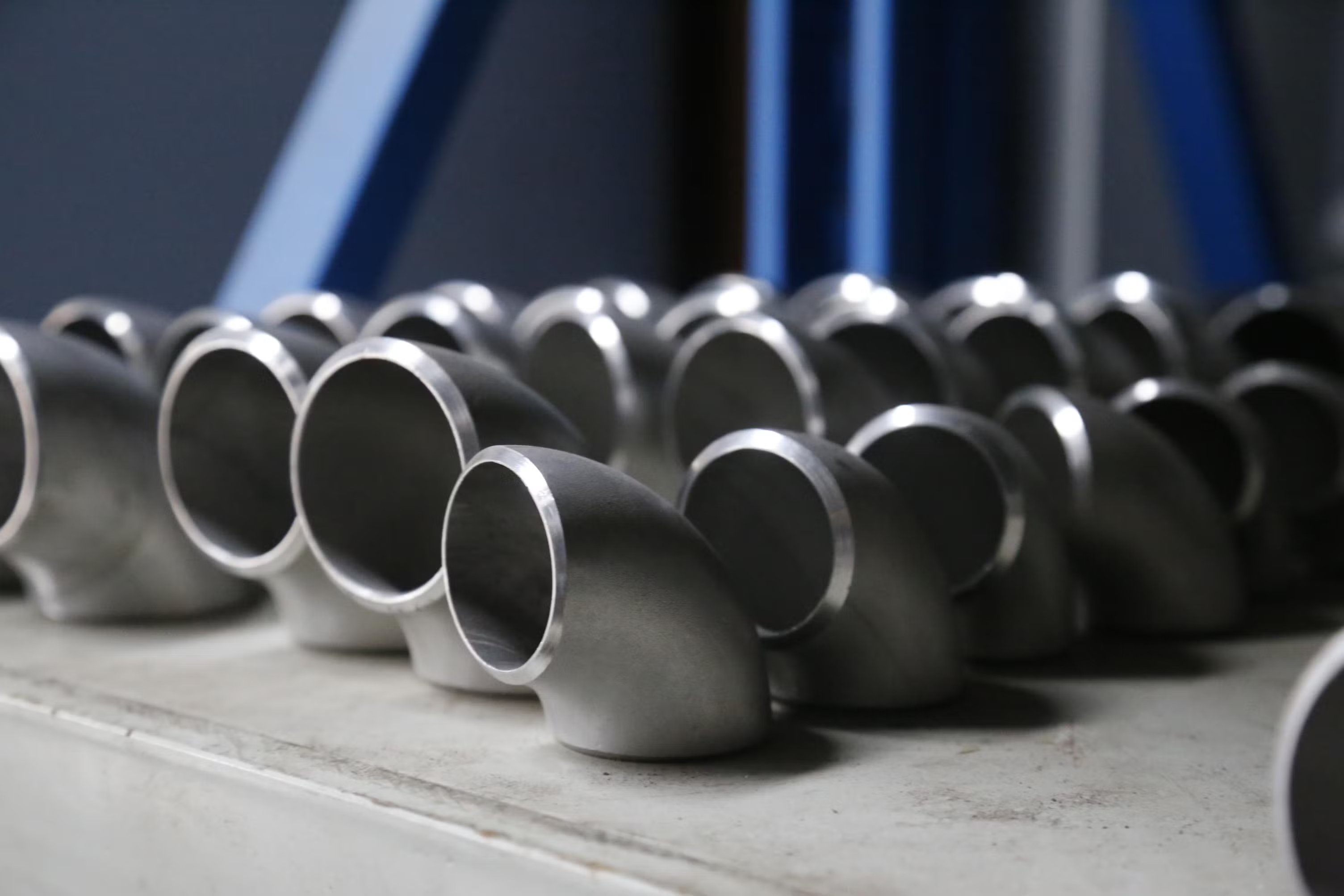

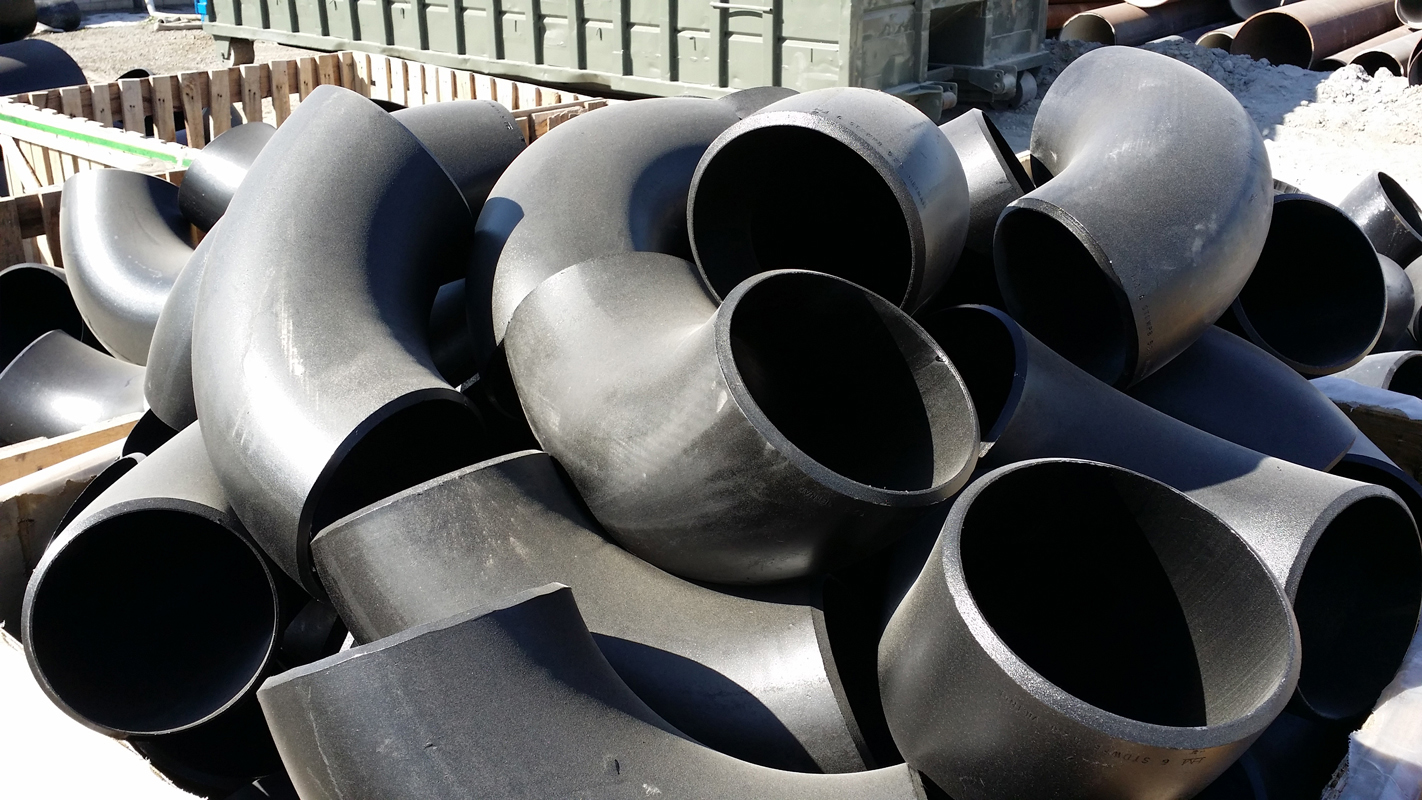

Buttweld Elbow
Elbows allow directional changes in piping systems, available in 45°, 90°, and 180° bends for smooth fluid flow with minimal pressure loss.

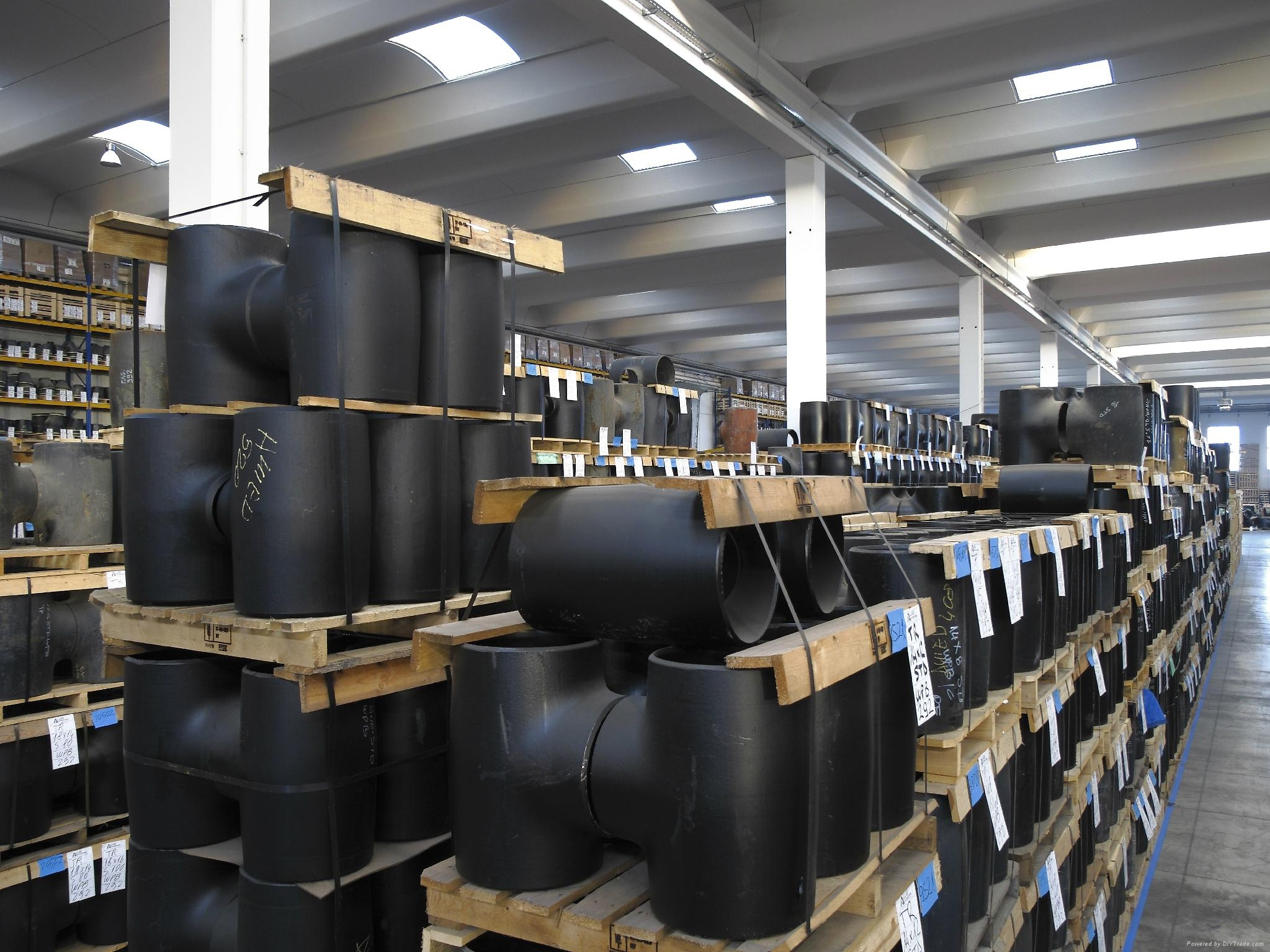

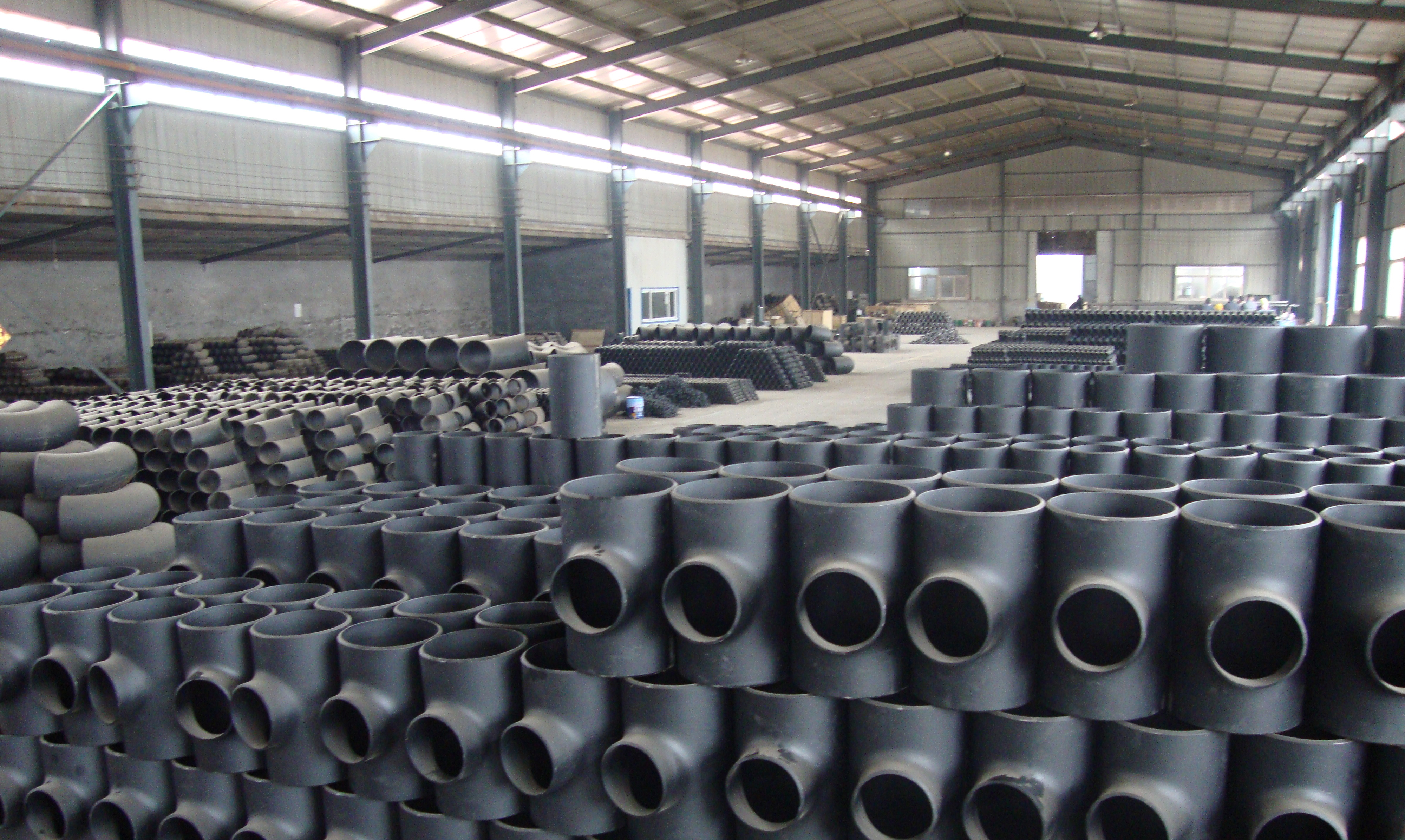

Buttweld Tee
Tees are used to split or combine flow in pipelines, offered in equal and reducing types for
multiple outlet configurations.
Buttweld Reducer
Reducers transition between pipe sizes, available in concentric (center-aligned) and eccentric (offset) types to manage flow and avoid turbulence.
Buttweld Cap
End caps are used to block the end of a piping system, providing secure sealing in high-pressure and high-temperature conditions.
Buttweld Stub End
Stub ends are used with lap joint flanges, making them ideal for systems requiring frequent dismantling for inspection or maintenance.
Buttweld Nipple
Nipples are short pieces of pipe with bevelled ends used for connecting fittings, valves, or
other equipment in tight spaces.
Carbon Steel Buttweld Fitting Dimensions Standard
Size Range of SA234 WPB Elbow
| Nom. Pipe Size | ASTM A234 WPB 90° Elbows | ASTM A234 WPB 45° Elbows | ASTM A234 WPB 180° Return Long Radius Elbow | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Long Radius | Short Radius | 3R | Long Radius | 3R | STD | XS | ||||||||
| STD | XS | SCH. 160 | XXS | STD | XS | STD | XS | STD | XS | STD | XS | |||
| ½ | .18 | .25 | – | – | – | – | – | – | .09 | .19 | – | – | .35 | – |
| ¾ | .19 | .25 | – | – | – | – | – | – | .09 | .19 | – | – | .40 | .65 |
| 1 | .40 | .50 | .60 | .75 | .25 | – | – | – | 0.25 | .31 | – | – | .75 | 1.00 |
| 1¼ | .60 | .90 | 1.00 | 1.38 | .4 | – | – | – | 0.38 | .50 | – | – | 1.25 | 1.75 |
| 1½ | .90 | 1.15 | 1.80 | 1.50 | .56 | .75 | – | – | .40 | .69 | – | – | 1.88 | 2.39 |
| 2 | 1.60 | 2.20 | 3.25 | 3.50 | 1.00 | 1.50 | 3.00 | 4.00 | .81 | 1.19 | 1.5 | 2.1 | 3.23 | 4.40 |
| 2½ | 3.25 | 4.00 | 5.13 | 7.00 | 2.13 | 2.80 | 6.00 | 8.00 | 1.75 | 2.13 | 3.00 | 4.00 | 6.50 | 8.00 |
| 3 | 5.00 | 6.50 | 8.50 | 11.0 | 3.00 | 4.25 | 10.0 | 13.0 | 2.63 | 3.50 | 5.00 | 7.00 | 10.25 | 13.00 |
| 3½ | 6.75 | 8.35 | – | 16.0 | 4.50 | 6.00 | 13.0 | 18.0 | 3.50 | 4.50 | 7.00 | 9.00 | 13.00 | 16.75 |
| 4 | 9.00 | 13.5 | 18.0 | 20.0 | 6.25 | 8.50 | 18.0 | 25.0 | 4.50 | 6.10 | 9.00 | 13.0 | 18.5 | 25.0 |
| 5 | 15.0 | 22.0 | 32.0 | 36.0 | 9.60 | 14.0 | 29.0 | 43.0 | 7.50 | 10.7 | 15.0 | 22.0 | 30.0 | 44.0 |
| 6 | 24.5 | 35.0 | 57.0 | 65.0 | 18.0 | 23.0 | 45.0 | 70.0 | 12.0 | 17.5 | 23.0 | 35.0 | 50.0 | 70.0 |
| 8 | 50.0 | 71.0 | 120 | 118 | 34.0 | 47.5 | 90.0 | 140 | 23.0 | 35.0 | 45.0 | 70.0 | 95.0 | 142 |
| 10 | 88.0 | 107 | 260 | – | 58.0 | 70.0 | 159 | 218 | 43.0 | 53.0 | 80.0 | 109 | 117 | 215 |
| 12 | 125 | 160 | 450 | – | 80.0 | 104 | 233 | 310 | 62.0 | 84.0 | 117 | 155 | 230 | 320 |
| 14 | 160 | 205 | 572 | – | 105 | 140 | 298 | 400 | 80.0 | 100 | 149 | 200 | 325 | 400 |
| 16 | 206 | 276 | – | – | 132 | 174 | 390 | 520 | 100 | 135 | 195 | 260 | 412 | 550 |
| 18 | 260 | 340 | – | – | 167 | 219 | 495 | 660 | 126 | 167 | 248 | 330 | 510 | 690 |
| 20 | 320 | 420 | – | – | 210 | 275 | 610 | 810 | 160 | 206 | 305 | 405 | 640 | 830 |
| 22 | 394 | 520 | – | – | – | – | 735 | 980 | 197 | 260 | 368 | 490 | 787 | 1040 |
| 24 | 460 | 600 | – | – | 298 | 392 | 875 | 1170 | 238 | 300 | 438 | 585 | 890 | 1200 |
| 26 | 550 | 729 | – | – | – | – | 1030 | 1370 | 275 | 365 | 515 | 685 | – | – |
| 30 | 734 | 975 | – | – | – | – | 1370 | 1830 | 367 | 488 | 685 | 915 | – | – |
| 36 | 1062 | 1412 | – | – | – | – | 1970 | 2630 | 531 | 706 | 985 | 1315 | – | – |
Features & Benefits
Our durable range of Carbon Steel Buttweld Fittings is engineered for high strength, reliability, and cost-efficiency in demanding applications. At Vardhman Steel Overseas, we supply fittings in grades like A234 WPB, A420 WPL6, A860 WPHY 42/52/60/65 to meet various industrial standards.
- High Strength & Toughness – Suitable for high-pressure and heavy-load applications.
- Excellent Weldability – Designed for easy fabrication and installation at site.
- Cost-Effective Solution – Ideal for industries with tight budgets and high-volume needs.
- Low Temperature Grades Available – ASTM A420 WPL6 suitable for sub-zero environments.
- WPHY Series for High Yield Applications – Perfect for critical gas & pipeline systems.
- Wide Schedule Range – Available in SCH10, SCH40, SCH80, SCH160, XXS & more.
- Multiple Connection Types – Beveled end, plain end, and custom ends available.
- Corrosion Resistant Coatings – Optional galvanizing and black finishes.
- Fast Delivery – Stock-ready elbows, tees, reducers, caps, stub ends, and more.
- Trusted Across Sectors – Used in oil & gas, petrochemical, water treatment, power, and more.
