Supplier of Brass ASTM B16 / B453 Forged Fittings

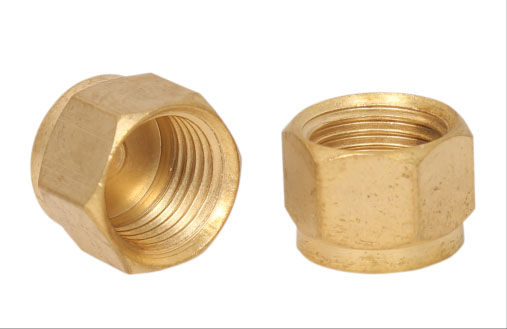

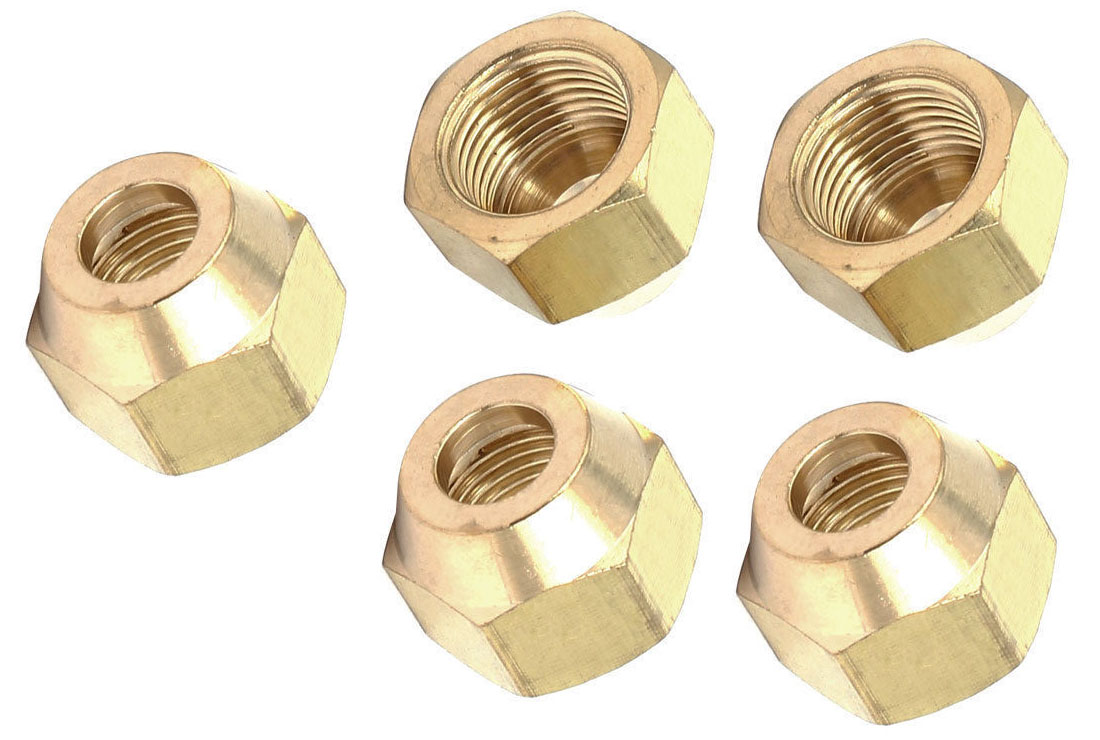

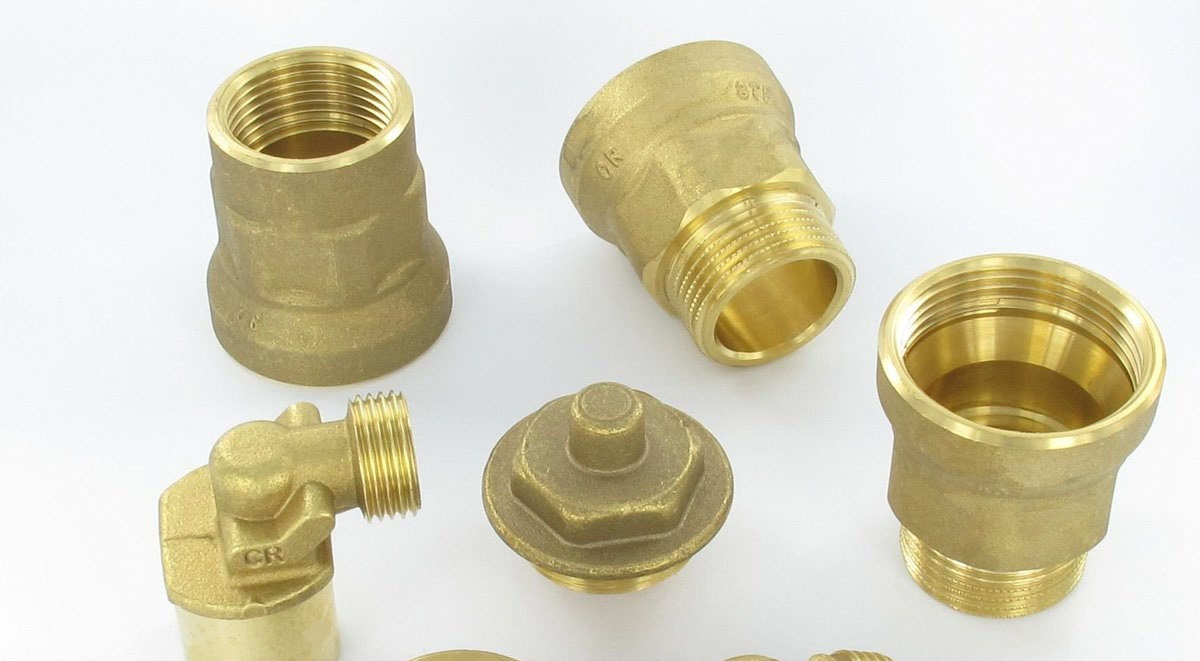

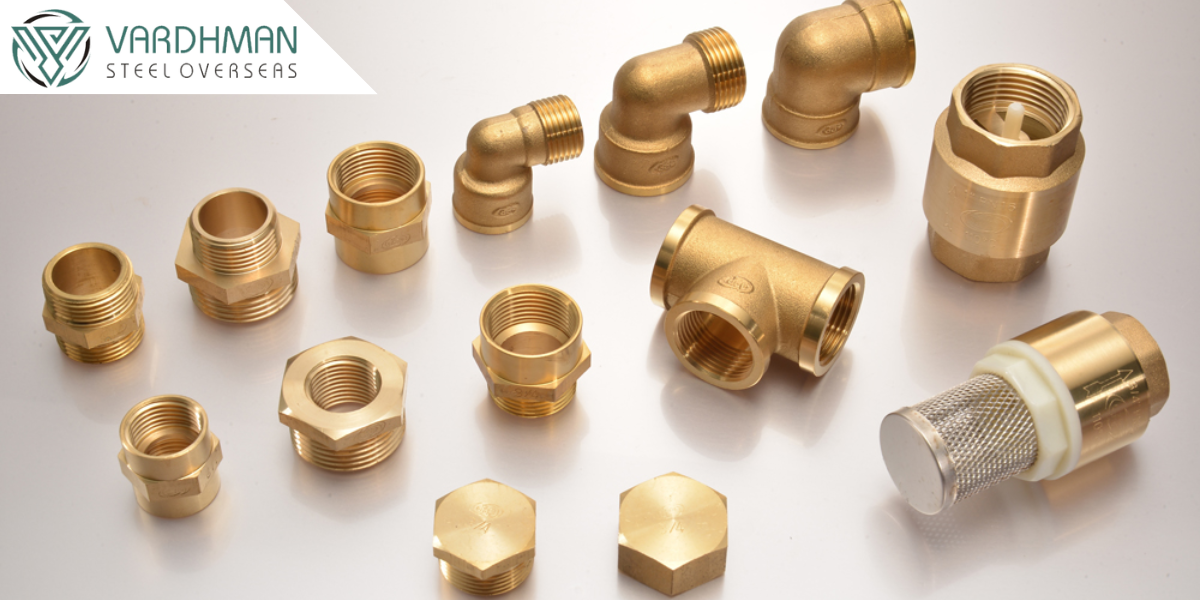

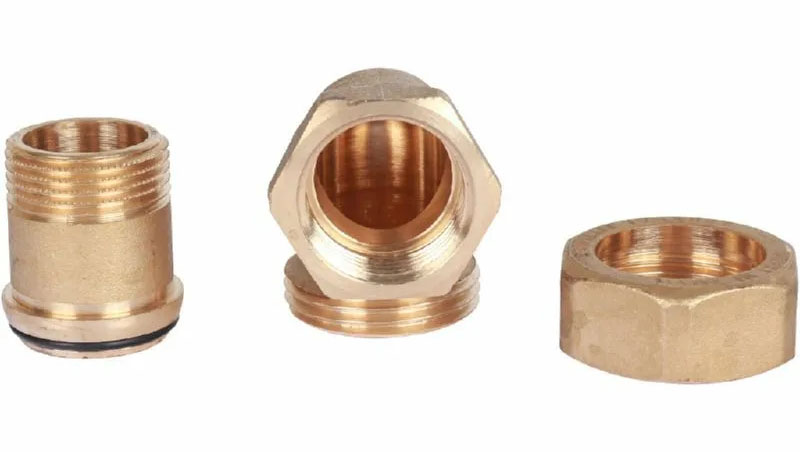

At Vardhman Steel Overseas, we supply high-quality Brass Forged Pipe Fittings designed for excellent corrosion resistance, machinability, and reliable performance in low to moderate pressure systems. These fittings are extensively used in plumbing, instrumentation, HVAC, compressed air systems, and marine hardware due to their versatility and resistance to dezincification. Our Brass forged fittings are manufactured from durable grades such as ASTM B16 C36000, ASTM B124 C37700, and ASTM B453, ensuring precision and performance in every application. Complying with global standards like ASME B16.11, BS 3799, and MSS SP-79, we offer both Socket Weld and Threaded (NPT/BSP) variants in pressure classes ranging from Class 2000 to Class 9000. These forged brass fittings undergo rigorous testing including hydrostatic testing, dimensional checks, and chemical composition analysis to ensure durability and product integrity for long-term use in corrosive or harsh media environments.
Brass Forged Fittings Specification
| Specification | Details / Grades | Available Types |
|---|---|---|
| Standard |
ASTM B16, B124, B453, ASME SB-16, SB-124, SB-453 Brass C36000 (Free Cutting Brass) Brass C37700 (Forging Brass) |
|
| Dimensions | ASME B16.11, MSS SP-79, BS 3799 | |
| Size Range | 1/8" to 4" (DN6 to DN100) | |
| Pressure Class | Class 2000, 3000, 6000, 9000 LBS | |
| Connection Types | Threaded (NPT/BSP), Socket Weld | |
| End Connections | Plain End, Threaded End | |
| Manufacturing Process | Hot Forged, Machined, Polished | |
| Test Certificates | EN 10204 3.1 / 3.2, Material Traceability, PMI | |
| Inspection | Third Party Approved (TPI), ISO, DNV, LLOYDS | |
| Applications | Water Supply, Marine, Oil & Gas, HVAC, Instrumentation | |
| Available Grades | Brass C36000, C37700, C46400 (Naval Brass), C48500 | |
| Brass Fittings Supplied with ISO, IBR & Third-Party Certification | ||
Types of Forged Fittings
Explore our precision-engineered Forged Fittings built for high-pressure and compact piping installations.
Forged Elbow
Available in 45° and 90° angles with Socket Weld & Threaded ends for directional change
Forged Tee
Used to connect three pipes in T-shaped formation, available in equal and reducing designs
Forged Reducer
Connects pipes of different diameters with secure and pressure-resistant joints
Forged Cap
Seals the end of piping or pressure vessels with high mechanical strength
Forged Stub End
Designed for lap joint flanges in systems needing frequent dismantling
Forged Nipple
Short pipe length with threaded or welded ends for joining valves or fittings
Forged Fittings Dimensions Table (ASME B16.11)
| NPS (in) | Elbow 90° Center to End (mm) | Tee Center to End (mm) | Wall Thickness (mm) | |||||
|---|---|---|---|---|---|---|---|---|
| Class 3000 | Class 6000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 9000 | |
| 1/8 | 16 | 19 | 19 | 22 | 3.8 | 4.1 | 6.1 | 7.5 |
| 1/4 | 19 | 22 | 22 | 25 | 4.0 | 4.3 | 6.6 | 8.0 |
| 3/8 | 21 | 25 | 25 | 29 | 4.5 | 4.8 | 7.1 | 8.6 |
| 1/2 | 25 | 29 | 29 | 35 | 5.3 | 5.6 | 8.1 | 9.7 |
| 3/4 | 29 | 35 | 35 | 41 | 5.8 | 6.1 | 8.6 | 10.2 |
| 1 | 38 | 41 | 41 | 51 | 6.3 | 6.6 | 9.1 | 10.7 |
| 1 1/4 | 44 | 51 | 51 | 60 | 6.7 | 7.0 | 9.6 | 11.2 |
| 1 1/2 | 51 | 60 | 60 | 64 | 7.3 | 7.6 | 10.2 | 12.0 |
| 2 | 60 | 64 | 64 | 67 | 7.8 | 8.1 | 11.2 | 13.3 |
| 2 1/2 | 76 | 83 | 83 | 86 | 8.8 | 9.1 | 12.7 | 14.8 |
| 3 | 86 | 95 | 95 | 99 | 9.3 | 9.6 | 13.7 | 15.9 |
| 4 | 106 | 114 | 114 | 118 | 10.9 | 11.2 | 15.7 | 18.0 |
Features & Benefits
Our precision-engineered Brass Forged Fittings are known for their superior corrosion resistance, thermal conductivity, and ease of installation. Manufactured to deliver consistent sealing and long-term performance, Vardhman Steel Overseas supplies these forged components for a wide range of industries including plumbing, HVAC, instrumentation, marine, and low-pressure gas applications.
- Corrosion Resistant – Excellent for water, gas, and non-aggressive fluids.
- High Machinability – Ideal for threaded and socket weld precision fittings.
- Good Thermal & Electrical Conductivity – Suitable for heat and electrical systems.
- Wide Material Compatibility – Can be used with copper, steel, and plastic pipes.
- Meets Global Standards – Manufactured as per ASME B16.11, BS3799, and ISO norms.
- Available in Class 2000 / 3000 / 6000 / 9000 – Covers broad pressure ranges.
- Excellent Leak Tightness – Reliable sealing in instrumentation and gas lines.
- Low Magnetic Permeability – Ideal for sensitive applications like metering systems.
- Highly Durable & Non-Sparking – Safe for hazardous and flammable areas.
- Custom Sizing & Finishing – Made-to-spec orders available with fast turnaround.
