Precision-Engineered Orifice Flanges Manufacturer & Supplier in India

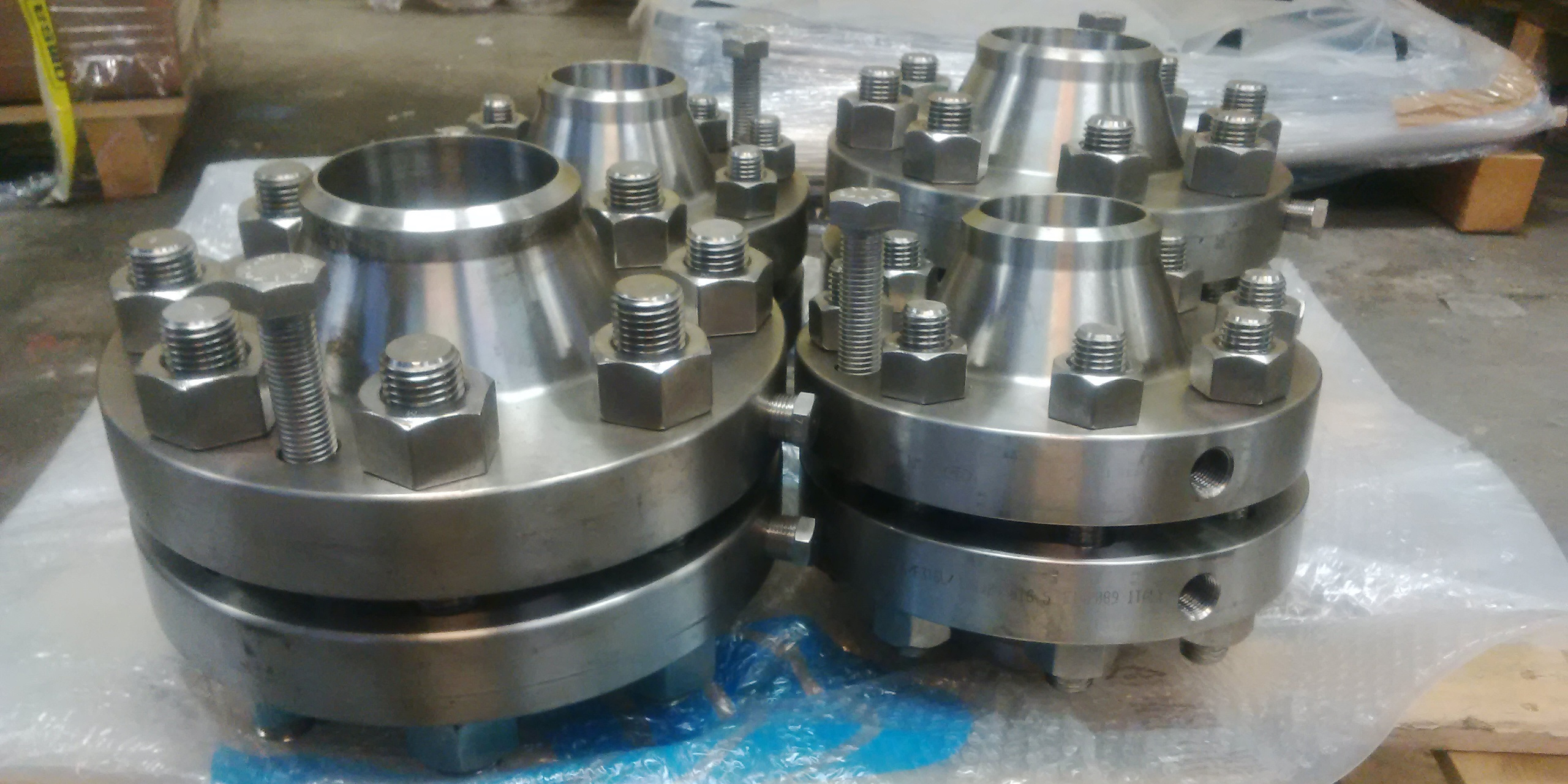

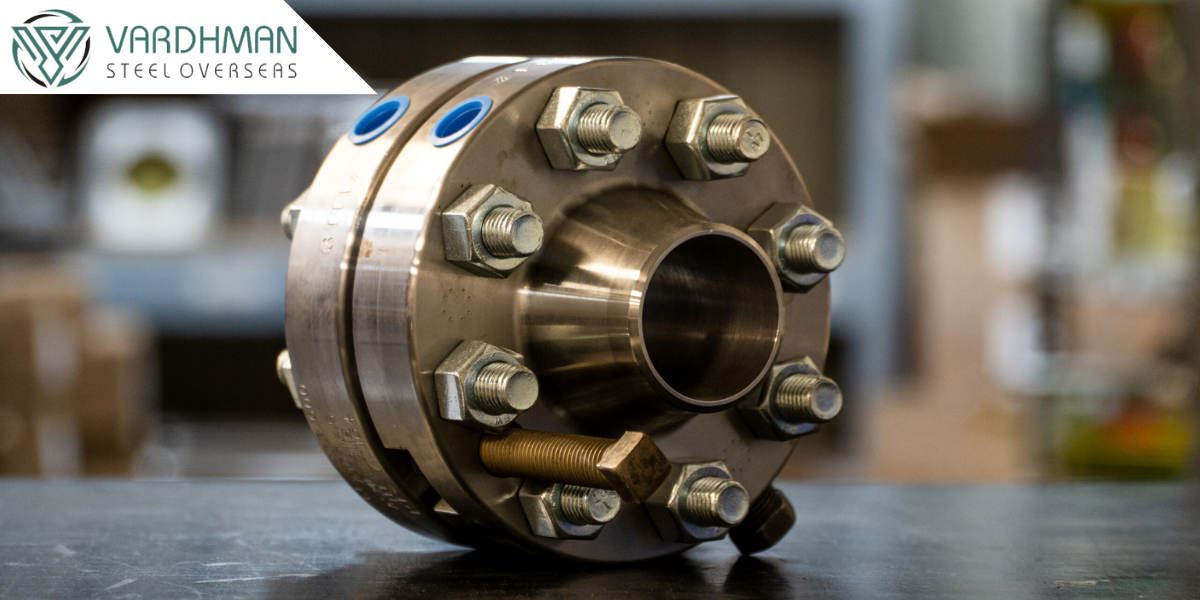

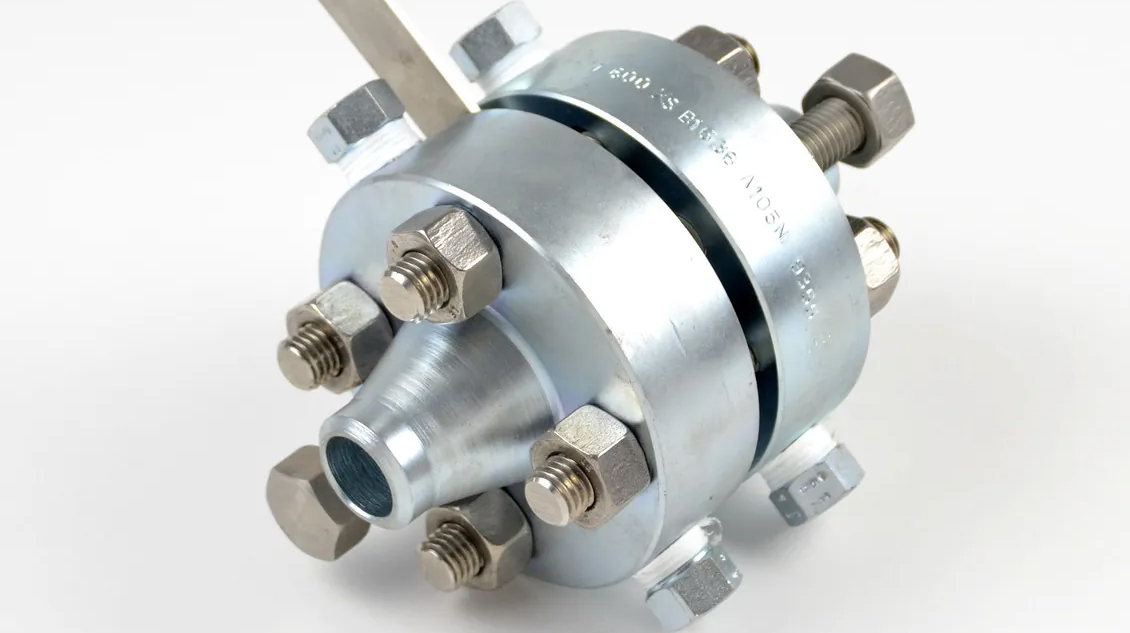

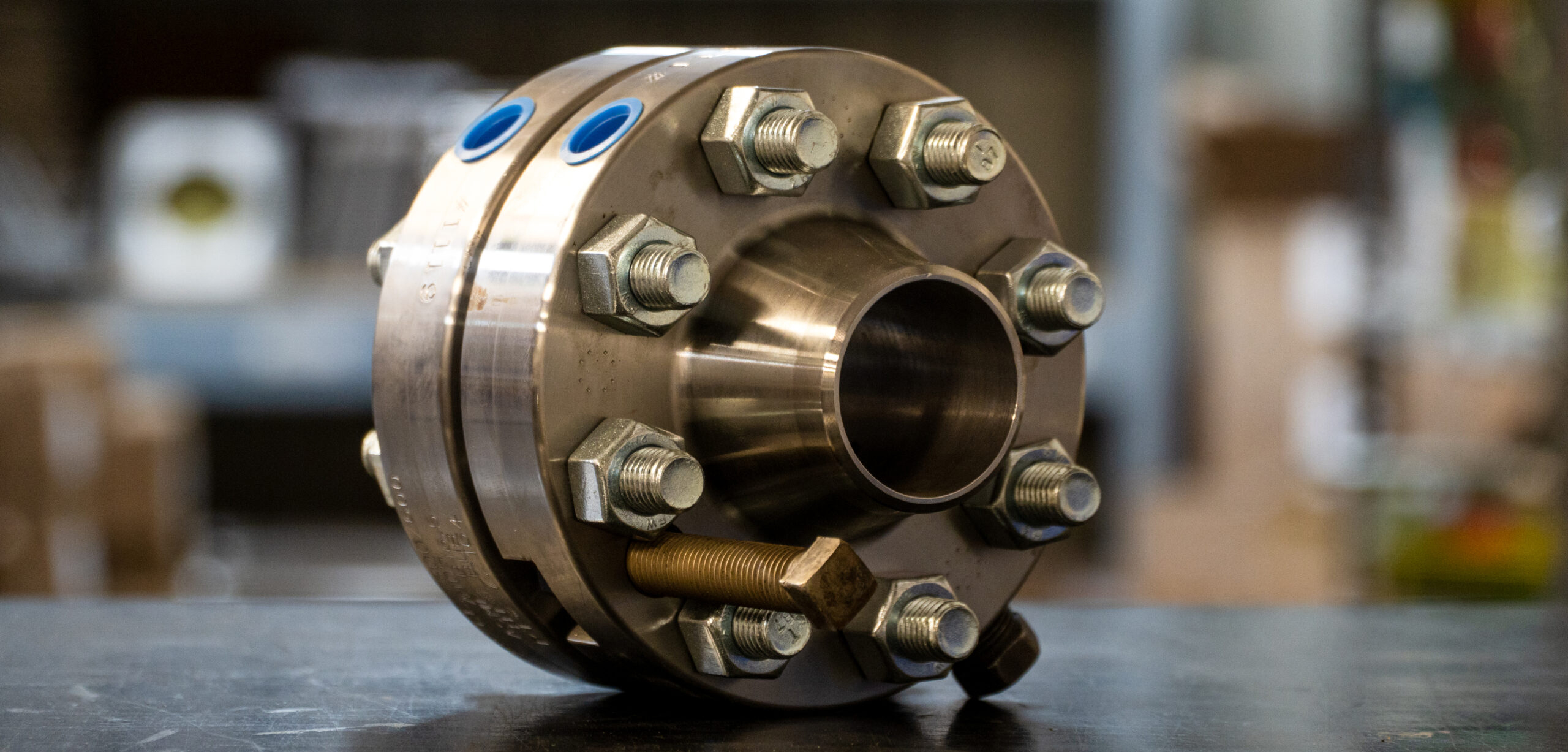

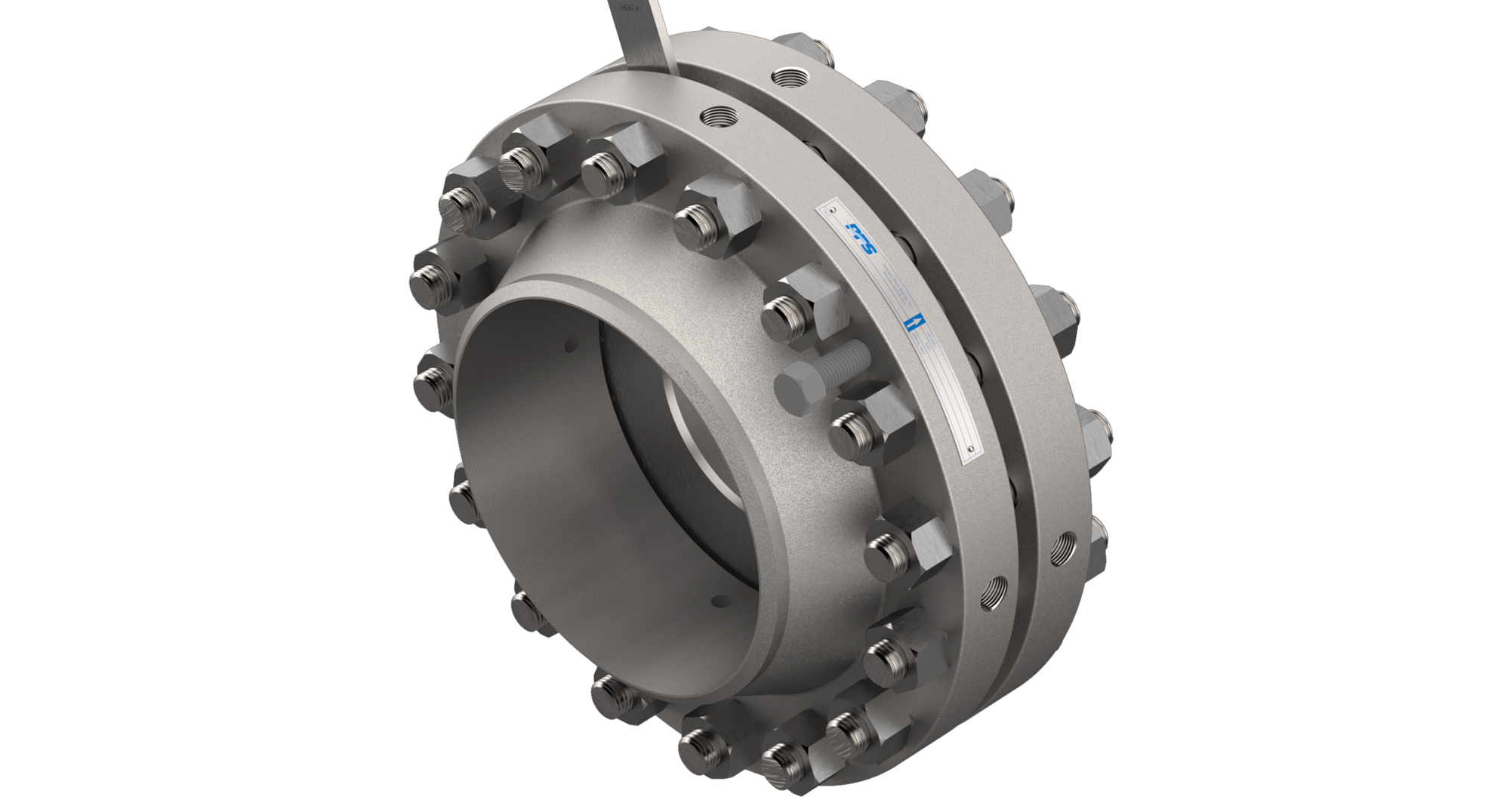

Orifice Flanges are specialized flanges designed to measure the flow rate of liquids or gases in a piping system. These flanges are used with an orifice plate and pressure taps to calculate flow using differential pressure. They are commonly installed in pipelines where accurate flow monitoring is essential for process control and system efficiency.
Vardhman Steel Overseas offers high-quality Orifice Flanges manufactured in compliance with ASTM, ASME, DIN, and EN standards. These flanges are available in Stainless Steel, Carbon Steel, Alloy Steel, Duplex, and Super Duplex with size ranges from ½” to 24” and pressure ratings of 150# to 2500#.
Orifice flanges are extensively used in oil & gas, chemical, power generation, water treatment, and refining industries. They provide a reliable, cost-effective method of measuring fluid flow while ensuring structural strength and leak-proof performance. Flanges are typically supplied with tapped holes, jack screws, and orifice plates upon request.
Choose Vardhman Steel Overseas for accurate, durable, and precisely machined Orifice Flanges that comply with international engineering standards and enhance operational efficiency in complex industrial systems.
Available Materials & Grades
We supply Orifice Flanges in a wide range of materials and grades to suit diverse flow measurement applications and media types.
| Material | Specifications / Grades |
|---|---|
| Stainless Steel | ASTM A182, A240 – F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L |
| Duplex & Super Duplex Steel | ASTM/ASME A/SA182 – F44, F45, F51, F53, F55, F60, F61 |
| Carbon Steel | ASTM/ASME A/SA105, A350, A181 LF2, A516 Gr.70, A36, A694 – F42, F46, F52, F60, F65, F706 |
| Low Temperature Carbon Steel | ASTM A350 – LF2, LF3 |
| Alloy Steel | ASTM/ASME A/SA182 & A387 – F1, F5, F9, F11, F12, F22, F91 |
| Copper Alloy Steel | ASTM SB61, SB62, SB151, SB152 – UNS C70600 (Cu-Ni 90/10), C71500 (Cu-Ni 70/30), C10100, C10200, C10300, C10800, C12000, C12200 |
| Nickel Alloy | ASTM SB564, SB160, SB472, SB162 – Nickel 200 (N02200), Nickel 201 (N02201), Monel 400 (N04400), Monel K500 (N05500), Inconel 600 (N06600), 601 (N06601), 625 (N06625), 800 (N08800), 825 (N08825), Hastelloy C276 (N10276), Alloy 20 (N08020) |
Orifice Flange – Technical Specifications
Explore the technical and dimensional specifications of our precision-engineered Orifice Flanges designed and manufactured by Vardhman Steel Overseas for accurate flow measurement in critical industrial systems.
| Specification Parameter | Details |
|---|---|
| Product Name | Orifice Flange |
| Size Range | ½” NB to 24” NB (15mm to 600mm) |
| Pressure Ratings | Class 150, 300, 600, 900, 1500, 2500, PN6 to PN64 |
| Facing Types | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF) |
| Orifice Accessories | Jack Screws, Tappings (NPT/BSP), Orifice Plate, Gaskets, Bolts & Nuts (on request) |
| Manufacturing Method | Forged / Machined |
| Applicable Standards | ANSI B16.36, B16.5, B16.47 Series A & B, API 605, ASME Section VIII, AWWA |
| DIN Standards | DIN2526, DIN2543–2545, DIN2566, DIN2633, DIN2673 |
| BS Standards | BS4504, BS10, BS1560 |
| Testing & Certification | Hydro Testing, PMI, UT, RT, MTC as per EN 10204 3.1 / 3.2, Third-Party Inspection (TPI) |
Features & Benefits
Orifice Flanges from Vardhman Steel Overseas are specifically designed for flow measurement applications in pipelines. These flanges offer precise pressure tap locations and support orifice plate installation, ensuring reliable flow monitoring in industrial systems.
- Integrated Pressure Tappings – Equipped with tapped holes for accurate differential pressure measurement.
- Precision Flow Monitoring – Used with orifice plates to measure fluid or gas flow rates precisely.
- High Accuracy – Ensures minimal pressure loss and accurate readings across a wide range of fluids.
- Leak-Free Connection – Bolted assembly with gaskets ensures a tight, secure seal in pressurized systems.
- Robust Construction – Forged and machined for durability under high-pressure applications.
- Multiple Tap Options – Available with corner taps, flange taps, and D & D/2 taps as required.
- Custom Orifice Plate Compatibility – Compatible with different orifice plate designs and materials.
- Versatile Facing Options – Available in Raised Face (RF), Ring Type Joint (RTJ), and Flat Face (FF).
- Meets International Standards – Conforms to ANSI B16.36, ASME, API, DIN, and BS specifications.
- Widely Used in Process Industries – Ideal for oil & gas, refineries, power generation, chemical, and water treatment.
