Supplier of High Nickel Alloy Butt Weld Fitting in India
Explore our superior quality range of High Nickel Alloy Buttweld Fittings, engineered for exceptional resistance to heat, corrosion, and pressure in the most demanding environments. At Vardhman Steel Overseas, we offer precision-manufactured fittings that meet global standards across a wide spectrum of high-performance nickel-based alloys.
We supply fittings in premium grades such as Inconel 600, 601, 625, 718, known for their high strength and oxidation resistance at elevated temperatures. For extreme chemical processing applications, our Hastelloy C276, C22, B2 fittings deliver outstanding resistance to strong acids and aggressive media.
Our inventory also includes Monel 400 and K500 buttweld fittings, ideal for marine and chemical applications due to their excellent toughness and resistance to saltwater corrosion. Additionally, we offer Incoloy 800, 800H, 800HT, and 825, which are trusted for high-temperature structural stability and superb performance in sulfur-rich and acidic environments.

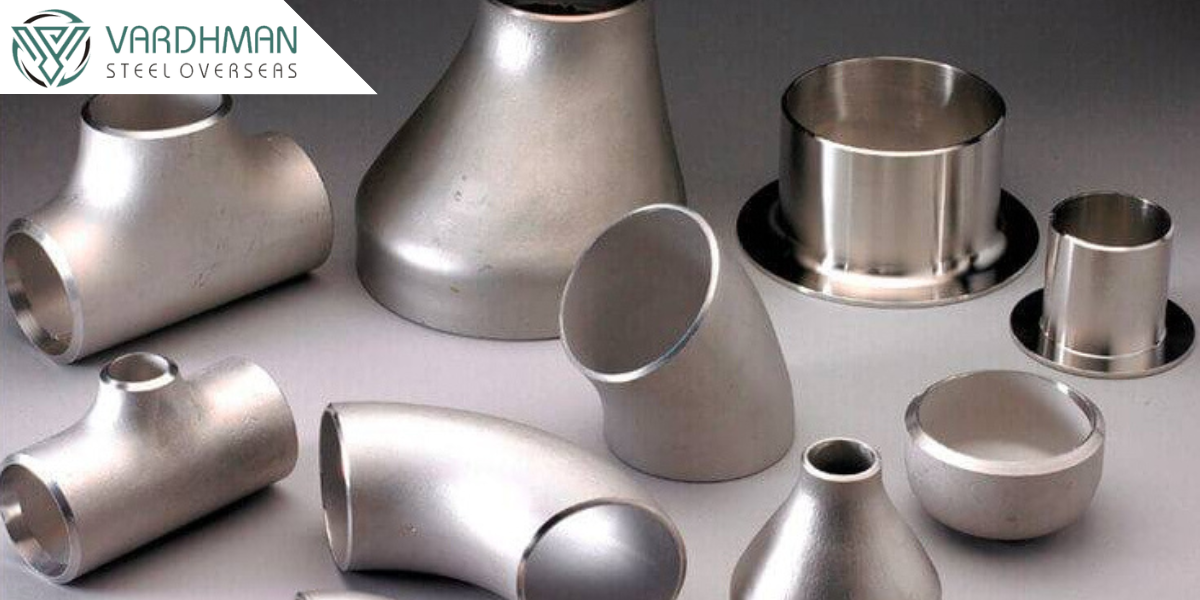

High Nickel Alloy Fittings are widely used in chemical processing, aerospace, marine, nuclear, power generation, and offshore oil & gas sectors where conventional stainless steel may fail. These fittings are available in a full range of types including elbows, tees, reducers, caps, stub ends, and pipe bends in various sizes and schedules to suit your application needs.
Specification of High Nickel Alloy Butt Weld Fittings
| Specification | Details / Grades | Available Types |
|---|---|---|
| Standard | ASTM B366 / ASME SB366 |
|
| Grades |
Inconel: 600, 601, 625, 718 Hastelloy: C276, C22, B2 Monel: 400, K500 Incoloy: 800, 800H, 800HT, 825 |
|
| Dimensions | ASME B16.9, B16.28, MSS-SP-43 | |
| Size (Seamless) | ½” – 10” | |
| Size (Welded) | ½” – 48” | |
| Size Range | ½” NB to 24” NB in Sch 10s, 40s, 80s, 160s, XXS (DN6 ~ DN100) | |
| Thickness | SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS | |
| Connection | Welding | |
| Type | DN15 – DN1200 | |
| Manufacturing Process | Push, Press, Forge, Cast, Hot / Cold Forming, Seamless, Welded | |
| Test Certificates | EN 10204/3.1B, Raw Material Certificate, 100% Radiography, Third Party Inspection | |
| Specialized In | Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bends | |
| EIL & IBR Approved Fittings | ||

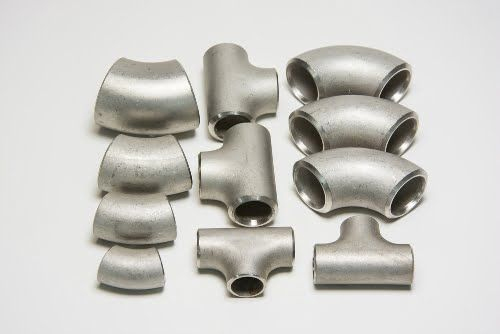

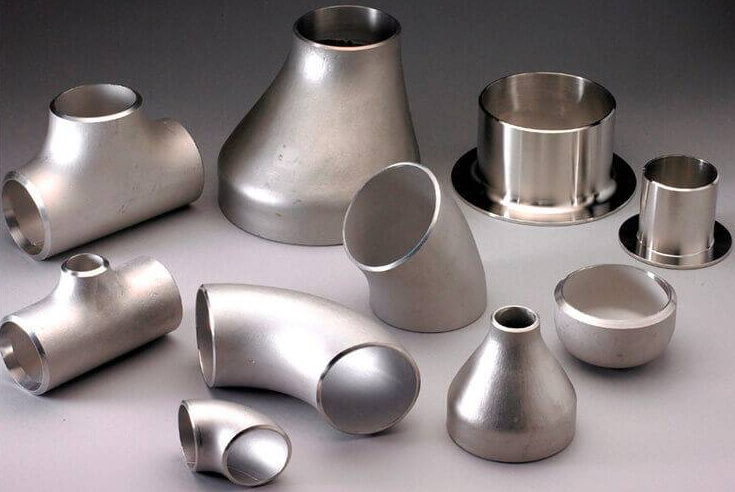

Types of Buttweld Fittings
Explore our precision-engineered Buttweld Fittings designed for leak-proof and high-strength piping systems.

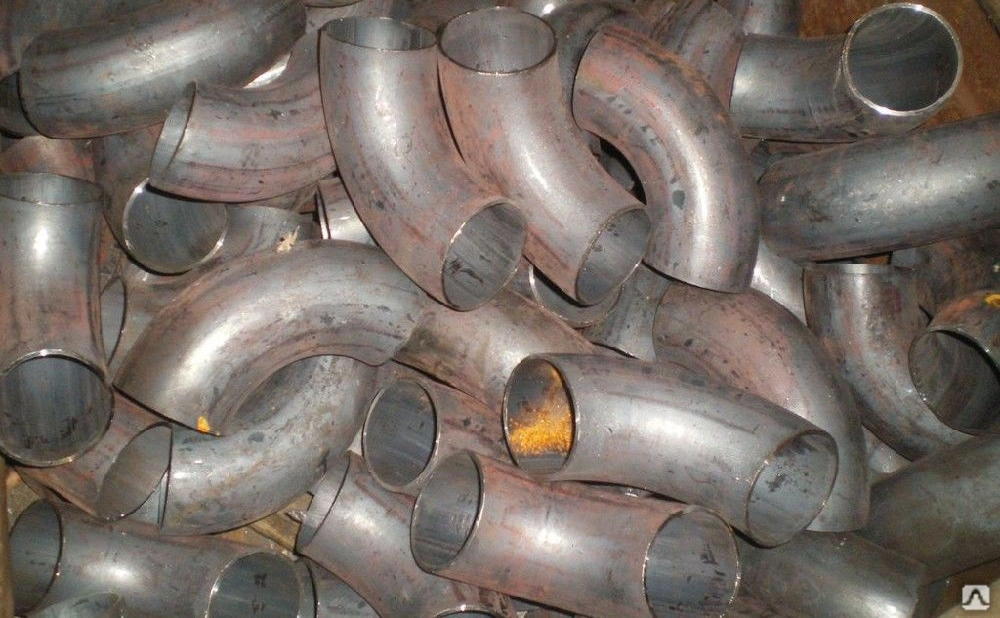

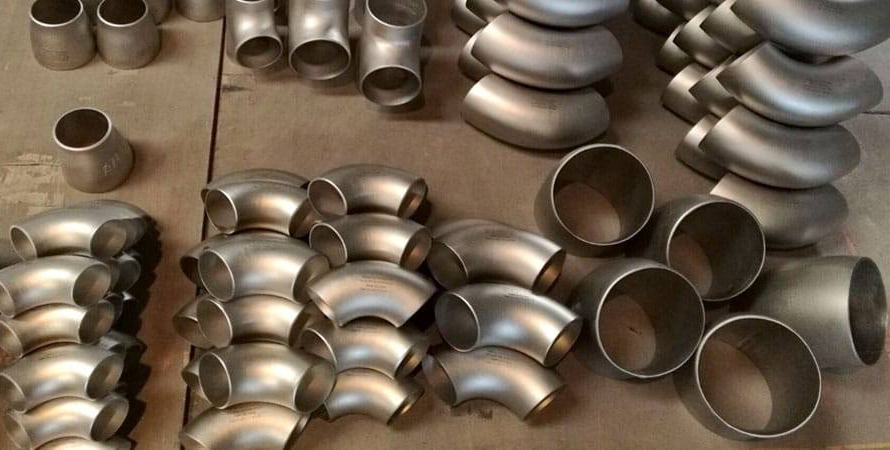

Buttweld Elbow
Elbows allow directional changes in piping systems, available in 45°, 90°, and 180° bends for smooth fluid flow with minimal pressure loss.
Buttweld Tee
Tees are used to split or combine flow in pipelines, offered in equal and reducing types for
multiple outlet configurations.
Buttweld Reducer
Reducers transition between pipe sizes, available in concentric (center-aligned) and eccentric (offset) types to manage flow and avoid turbulence.
Buttweld Cap
End caps are used to block the end of a piping system, providing secure sealing in high-pressure and high-temperature conditions.
Buttweld Stub End
Stub ends are used with lap joint flanges, making them ideal for systems requiring frequent dismantling for inspection or maintenance.
Buttweld Nipple
Nipples are short pieces of pipe with bevelled ends used for connecting fittings, valves, or
other equipment in tight spaces.
Dimensions of ANSI B16.9 DIN 2.4816 Reducer
| NPS | Length H |
OD D1 |
OD D |
|---|---|---|---|
| 3/4 - 1/2 | 38 | 21.3 | 26.7 |
| 1 - 3/4 | 51 | 26.7 | 33.4 |
| 1.1/4 - 3/4 | 51 | 26.7 | 42.2 |
| 1.1/2 - 1/2 | 64 | 21.3 | 48.3 |
| 1.1/2 - 1 | 64 | 33.4 | 48.3 |
| 2 - 3/4 | 76 | 26.7 | 60.3 |
| 2 - 1.1/4 | 76 | 42.2 | 60.3 |
| 2.1/2 - 1 | 89 | 33.4 | 73 |
| 2.1/2 - 1.1/2 | 89 | 48.3 | 73 |
| 3 - 1.1/4 | 89 | 42.2 | 88.9 |
| 3 - 2 | 89 | 60.3 | 88.9 |
| 3.1/2 - 1.1/4 | 102 | 42.2 | 101.6 |
| 3.1/2 - 2 | 102 | 60.3 | 101.6 |
| 3.1/2 - 3 | 102 | 88.9 | 101.6 |
| 4 - 2 | 102 | 60.3 | 114.3 |
| 4 - 3 | 102 | 88.9 | 114.3 |
| 5 - 2 | 127 | 60.3 | 141.3 |
| 5 - 3 | 127 | 88.9 | 141.3 |
| 5 - 4 | 127 | 114.3 | 141.3 |
| 6 - 3 | 140 | 88.9 | 168.3 |
| 6 - 4 | 140 | 114.3 | 168.3 |
| 8 - 3.1/2 | 152 | 101.6 | 219.1 |
| 8 - 5 | 152 | 141.3 | 219.1 |
| 10 - 4 | 178 | 114.3 | 273 |
| 10 - 6 | 178 | 168.3 | 273 |
| 12 - 5 | 203 | 141.3 | 323.9 |
| 12 - 8 | 203 | 219.1 | 323.9 |
| 14 - 6 | 330 | 168.3 | 355.6 |
| 14 - 10 | 330 | 273 | 355.6 |
| 16 - 8 | 356 | 219 | 406.4 |
| 16 - 12 | 356 | 323.9 | 406.4 |
| 18 - 10 | 381 | 273 | 457 |
| 18 - 14 | 381 | 355.6 | 457 |
| 20 - 12 | 508 | 323.9 | 508 |
| 20 - 16 | 508 | 406.4 | 508 |
| 22 - 14 | 508 | 355.6 | 559 |
| 22 - 18 | 508 | 457 | 559 |
| 24 - 16 | 508 | 406.4 | 610 |
| 24 - 20 | 508 | 508 | 610 |
| 26 - 18 | 610 | 457 | 660 |
| 26 - 22 | 610 | 559 | 660 |
| 28 - 18 | 610 | 457 | 711 |
| 28 - 24 | 610 | 610 | 711 |
| 30 - 20 | 610 | 508 | 762 |
| 30 - 26 | 610 | 660 | 762 |
| 32 - 24 | 610 | 610 | 813 |
| 36 - 24 | 610 | 610 | 914 |
| 36 - 30 | 610 | 762 | 914 |
| 36 - 34 | 610 | 864 | 914 |
| 38 - 28 | 610 | 711 | 965 |
| 38 - 32 | 610 | 813 | 965 |
| 38 - 36 | 610 | 914 | 965 |
| 40 - 32 | 610 | 813 | 1016 |
Fittings Dimensions
| NPS | OD | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| inch | millimeter | SR | LR | LR | LR | |||
| Center to Face | Center to Face | Radius | Center to Face | Back to face | Center to Center | |||
| inch | inch | inch | inch | inch | inch | |||
| 1/2 | 0.84 | 21.3 | 1-1/2 | 5/8 | 1-7/8 | 2 | ||
| 3/4 | 1.05 | 26.7 | 1-1/8 | 7/16 | 1-11/16 | 2-1/4 | ||
| 1 | 1.315 | 33.4 | 1 | 1-1/2 | 7/8 | 2-3/16 | 3 | |
| 1-1/4 | 1.66 | 42.2 | 1-1/4 | 1-7/8 | 1 | 2-3/4 | 3-3/4 | |
| 1 -1/2 | 1.9 | 48.3 | 1-1/2 | 2-1/4 | 3 | 1-1/8 | 3-1/4 | 4-1/2 |
| 2 | 2.375 | 60.3 | 2 | 3 | 4 | 1-3/8 | 4-3/16 | 6 |
| 2 1/2 | 2.875 | 73 | 2-1/2 | 3-3/4 | 5 | 1-3/4 | 5-3/16 | 7-1/2 |
| 3 | 3.5 | 88.9 | 3 | 4-1/2 | 6 | 2 | 6-1/4 | 9 |
| 3-1/2 | 4 | 101.6 | 3-1/2 | 5-1/4 | 7 | 2-1/4 | 7-1/4 | 10-1/2 |
| 4 | 4.5 | 114.3 | 4 | 6 | 8 | 2-1/2 | 8-1/4 | 12 |
| 5 | 5.563 | 141.3 | 5 | 7-1/2 | 10 | 3-1/8 | 10-5/16 | 15 |
| 6 | 6.625 | 168.3 | 6 | 9 | 12 | 3-3/4 | 12-5/16 | 18 |
| 8 | 8.625 | 219.1 | 8 | 12 | 12 | 5 | 16-5/16 | 24 |
| 10 | 10.75 | 273.1 | 10 | 15 | 15 | 6-1/4 | 20-3/8 | 30 |
| 12 | 12.75 | 323.9 | 12 | 18 | 18 | 7-1/2 | 24-3/8 | 36 |
Features & Benefits
Our premium range of High Nickel Alloy Buttweld Fittings is engineered to perform exceptionally well in extreme environments, offering outstanding resistance to corrosion, heat, and mechanical stress. Vardhman Steel Overseas delivers fittings in specialized nickel alloy grades such as Inconel 600, 601, 625, 718, Hastelloy C276, C22, B2, Monel 400, K500, and Incoloy 800, 800H, 800HT, 825 to meet the demands of the most critical industries.
- Exceptional Corrosion Resistance – Performs well in acidic, alkaline, and seawater environments.
- High Temperature Tolerance – Suitable for elevated temperature and thermal cycling applications.
- Superior Strength & Durability – Withstands high pressure and stress over prolonged use.
- Excellent Fabrication Properties – Easily welded and formed without compromising strength.
- Low Maintenance & Long Service Life – Ideal for offshore, aerospace, chemical, and nuclear sectors.
- Multiple Grades Available – Inconel, Monel, Hastelloy, Incoloy series offered.
- Custom Wall Thicknesses – SCH10 to XXS with precise dimensional accuracy.
- Compliant with Global Standards – ASME, ASTM, DIN, MSS-SP specifications followed.
- Ready Stock Availability – For quick supply of elbows, tees, reducers, stubs & bends.
- Versatile Industrial Use – Power plants, refineries, oil & gas, marine, and chemical processing.
