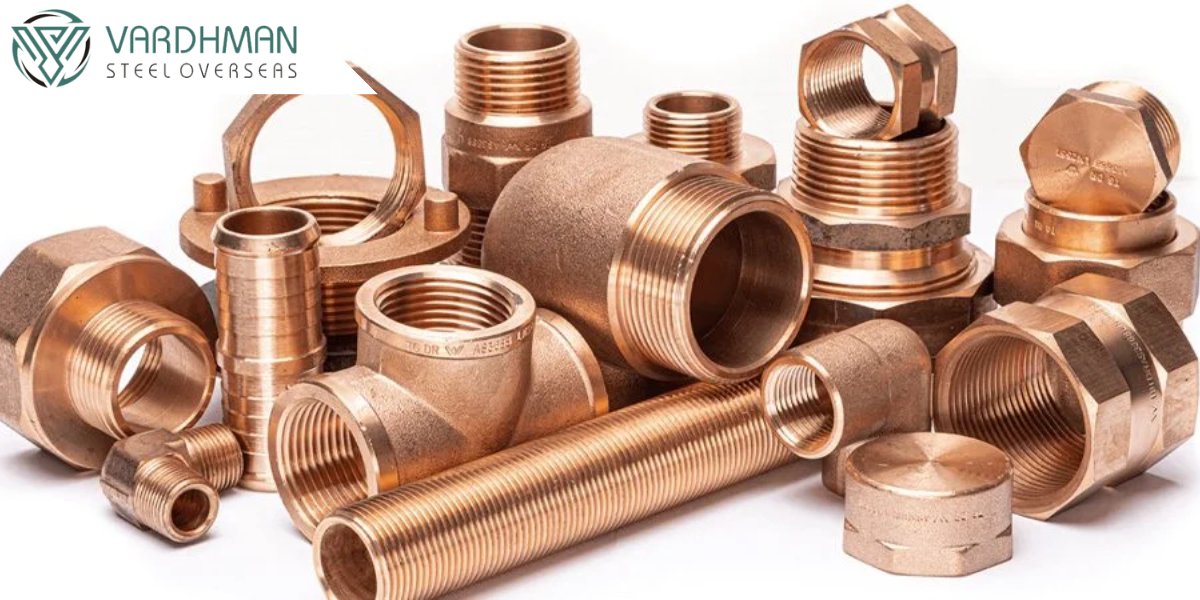

Supplier of Copper & Copper Nickel ASTM B122 / B467 Forged Fittings
At Vardhman Steel Overseas, we offer a wide range of high-quality Copper and Copper Nickel Forged Pipe Fittings engineered for durability and corrosion resistance. These fittings are ideally suited for applications in marine engineering, heat exchangers, desalination plants, and chemical processing systems. Our Copper Nickel forged fittings are manufactured from premium grades such as Copper Nickel 70/30, 90/10, and Pure Copper (C10100 / C11000), complying with international standards like ASTM B122, B467, ASME B16.11, and BS 3799. These forged fittings offer excellent resistance to saltwater corrosion, biofouling, and erosion, while maintaining strength at high temperatures. They are available in Socket Weld and Threaded connections, in pressure ratings ranging from Class 2000 to Class 9000.
Copper & Copper Nickel Forged Fittings Specification
| Specification | Details / Grades | Available Types |
|---|---|---|
| Standard | ASTM B122 / B467 / ASME SB-122 / SB-467 Copper Nickel 70/30 (C71500) Copper Nickel 90/10 (C70600) Pure Copper C10100, C10200, C11000 |
|
| Dimensions | ASME B16.11, MSS SP-79, BS 3799 | |
| Size Range | 1/8" to 4" (DN6 to DN100) | |
| Pressure Class | Class 2000, 3000, 6000, 9000 LBS | |
| Connection Types | Threaded (NPT/BSPT), Socket Weld | |
| End Connections | Plain End, Threaded End | |
| Manufacturing Process | Hot Forged, Machined, Pickled | |
| Test Certificates | EN 10204 3.1 / 3.2, NACE MR0175 / MR0103, PMI | |
| Inspection | Third Party Approved (TPI), IBR, LLOYDS, DNV | |
| Applications | Shipbuilding, Power Generation, Oil & Gas, Desalination, HVAC Systems | |
| Available Grades | Copper Nickel 90/10 (C70600) Copper Nickel 70/30 (C71500) Pure Copper (C10100 / C11000) |
|
| Copper & Cu-Ni Fittings Supplied with IBR & Third-Party Certification | ||

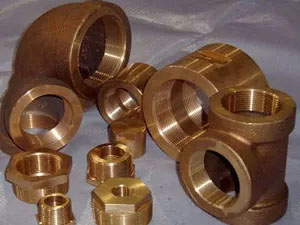

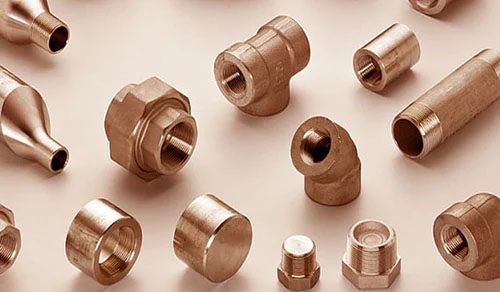

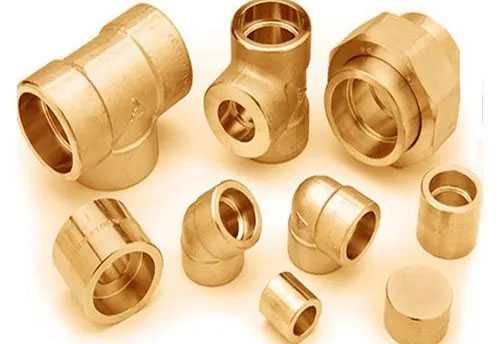

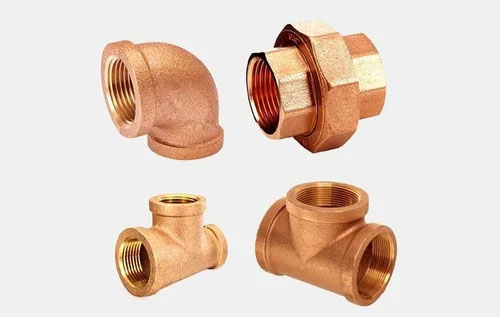

Types of Forged Fittings
Explore our precision-engineered Forged Fittings built for high-pressure and compact piping installations.
Forged Elbow
Available in 45° and 90° angles with Socket Weld & Threaded ends for directional change
Forged Tee
Used to connect three pipes in T-shaped formation, available in equal and reducing designs
Forged Reducer
Connects pipes of different diameters with secure and pressure-resistant joints
Forged Cap
Seals the end of piping or pressure vessels with high mechanical strength
Forged Stub End
Designed for lap joint flanges in systems needing frequent dismantling
Forged Nipple
Short pipe length with threaded or welded ends for joining valves or fittings
Forged Fittings Dimensions Table (ASME B16.11)
| NPS (in) | Elbow 90° Center to End (mm) | Tee Center to End (mm) | Wall Thickness (mm) | |||||
|---|---|---|---|---|---|---|---|---|
| Class 3000 | Class 6000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 9000 | |
| 1/8 | 16 | 19 | 19 | 22 | 3.8 | 4.1 | 6.1 | 7.5 |
| 1/4 | 19 | 22 | 22 | 25 | 4.0 | 4.3 | 6.6 | 8.0 |
| 3/8 | 21 | 25 | 25 | 29 | 4.5 | 4.8 | 7.1 | 8.6 |
| 1/2 | 25 | 29 | 29 | 35 | 5.3 | 5.6 | 8.1 | 9.7 |
| 3/4 | 29 | 35 | 35 | 41 | 5.8 | 6.1 | 8.6 | 10.2 |
| 1 | 38 | 41 | 41 | 51 | 6.3 | 6.6 | 9.1 | 10.7 |
| 1 1/4 | 44 | 51 | 51 | 60 | 6.7 | 7.0 | 9.6 | 11.2 |
| 1 1/2 | 51 | 60 | 60 | 64 | 7.3 | 7.6 | 10.2 | 12.0 |
| 2 | 60 | 64 | 64 | 67 | 7.8 | 8.1 | 11.2 | 13.3 |
| 2 1/2 | 76 | 83 | 83 | 86 | 8.8 | 9.1 | 12.7 | 14.8 |
| 3 | 86 | 95 | 95 | 99 | 9.3 | 9.6 | 13.7 | 15.9 |
| 4 | 106 | 114 | 114 | 118 | 10.9 | 11.2 | 15.7 | 18.0 |
Features & Benefits
Our high-quality Copper & Copper Nickel Forged Fittings are specifically designed for applications demanding superior resistance to seawater corrosion, biofouling, and stress-related cracking. Vardhman Steel Overseas supplies these fittings in popular grades such as Copper Nickel 90/10 (C70600) and 70/30 (C71500), making them ideal for marine, offshore, power generation, and desalination plants due to their long-lasting performance in aggressive environments.
- Exceptional Corrosion Resistance – Especially effective in seawater and brine solutions.
- Anti-Biofouling Properties – Reduces marine organism attachment.
- Excellent Thermal Conductivity – Suitable for heat exchanger and condenser applications.
- Socket Weld & Threaded Designs – Available in precise end types for secure installation.
- Compliance with Industry Standards – ASME B16.11, MSS SP-79, ASTM B122/B467 compliant.
- Available in Class 2000 / 3000 / 6000 / 9000 – Suitable for both light and heavy-duty systems.
- High Resistance to Erosion & Cavitation – Ideal for high-flow marine systems.
- Non-Magnetic & Spark-Resistant – Suitable for electrical and naval environments.
- Custom Sizes & Prompt Delivery – Standard and tailor-made fittings available.
- Quality Assured – 100% tested via PMI, hydro, and visual inspection.
