Supplier of Alloy Steel ASTM A182 Forged Fitting

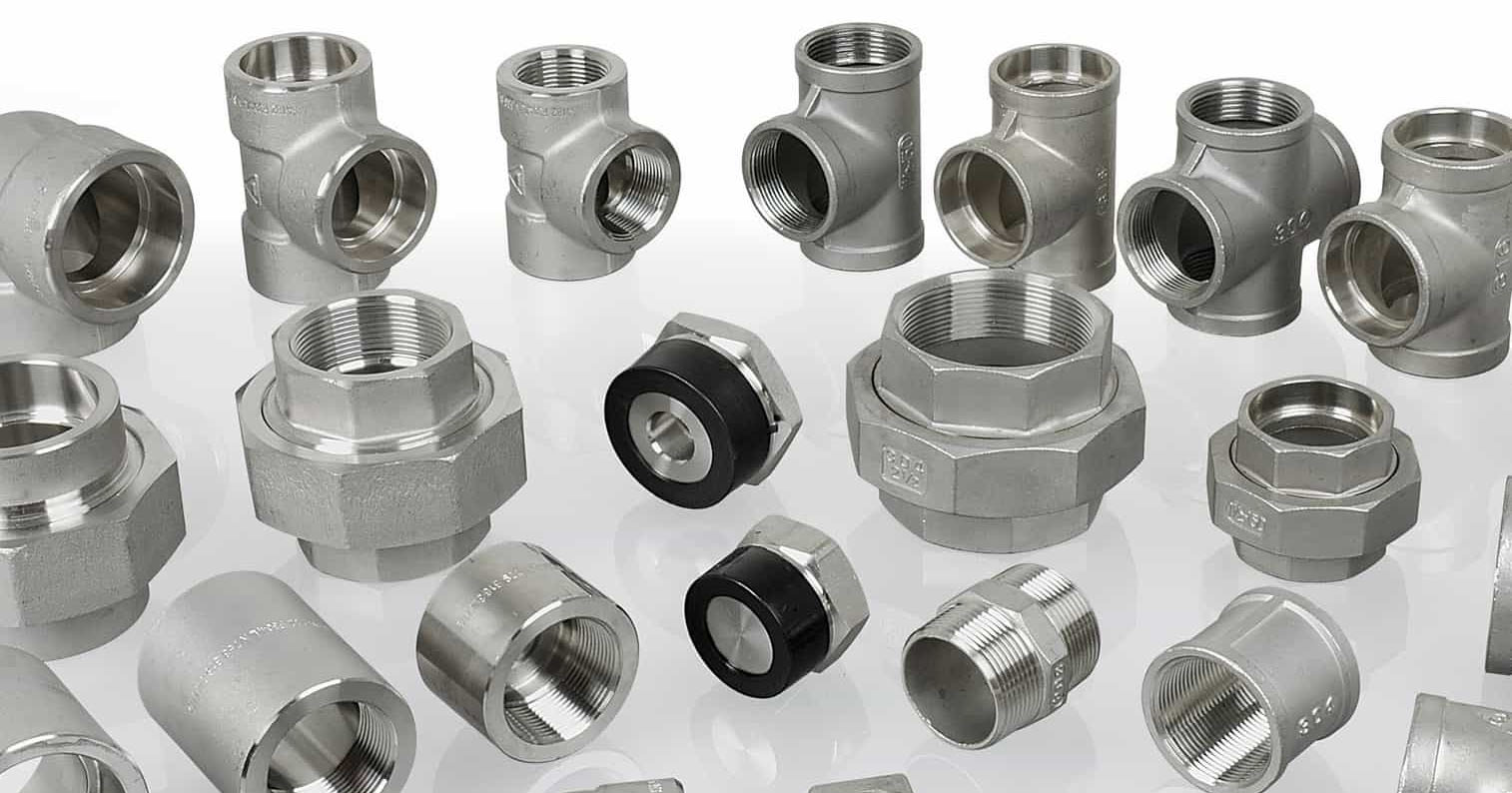

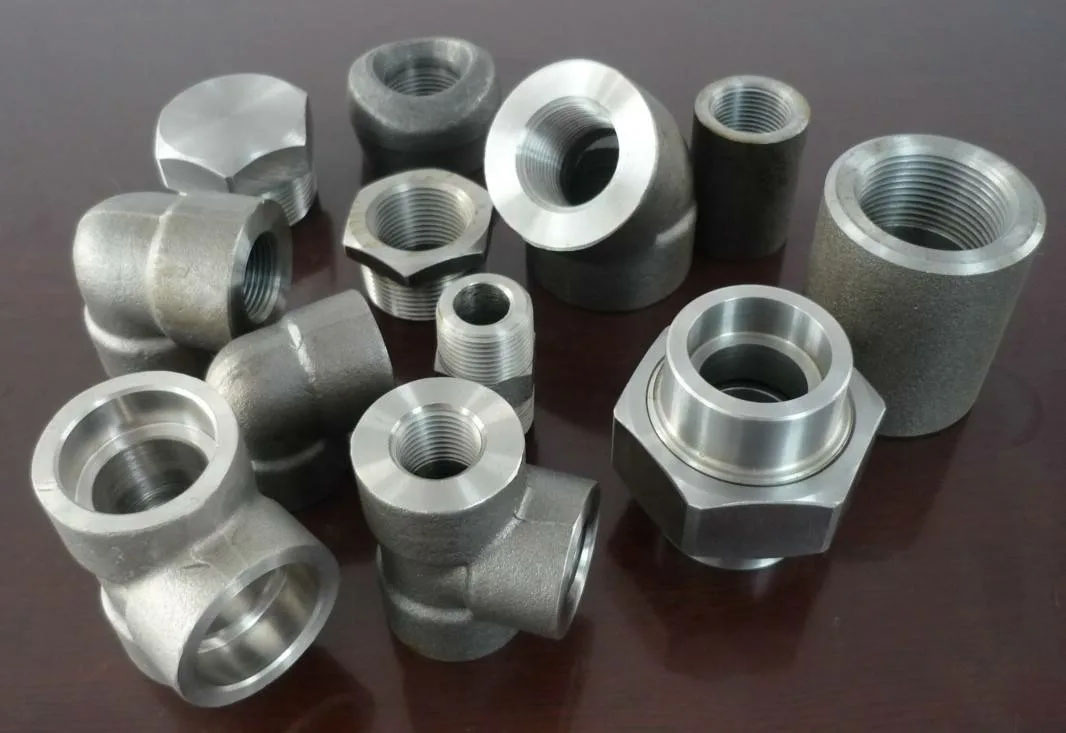

At Vardhman Steel Overseas, we are a prominent manufacturer and exporter of Alloy Steel Forged Pipe Fittings in India, offering a robust selection of elbows, tees, nipples, unions, couplings, bushings, and plugs designed for critical high-pressure and high-temperature applications. Our forged fittings are manufactured using premium-grade alloy steels including ASTM A182 F1, F5, F9, F11, F22, and F91, known for their creep resistance, tensile strength, and thermal durability. These alloy steel forged fittings are engineered in accordance with globally accepted standards such as ASME B16.11, MSS SP-79, MSS SP-83, and ASTM A182, ensuring dimensional precision, performance reliability, and seamless integration with industrial pipe systems. They are widely used in demanding sectors such as power generation, petrochemical, refineries, nuclear plants, and thermal processing units. We offer both Socket Weld and Threaded (NPT/BSP) ends in pressure ratings including Class 2000, 3000, 6000, and 9000, meeting the diverse needs of various high-stress applications. Each fitting is subjected to thorough non-destructive testing, hardness testing, and chemical composition analysis to assure safety, compliance, and long service life. At Vardhman Steel Overseas, we deliver precision-crafted alloy steel forged fittings with unmatched quality, technical support, and on-time delivery, making us the preferred partner for critical piping components worldwide.
Alloy Steel Forged Fitting Specification
| Specification | Details / Grades | Available Types |
|---|---|---|
| Standard | ASTM A182 F1 / F5 / F9 / F11 / F22 / F91 |
|
| Dimensions | ASME B16.11, MSS SP-79, SP-83, SP-95, BS 3799 | |
| Size Range | 1/8" to 4" (DN6 to DN100) | |
| Pressure Class | Class 2000, 3000, 6000, 9000 LBS | |
| Connection Types | Threaded (NPT/BSPT), Socket Weld | |
| End Connections | Bevel End, Plain End, Threaded End | |
| Manufacturing Process | Forged, Machined, Normalized, Tempered, Quenched & Heat Treated | |
| Test Certificates | EN 10204 3.1 / 3.2, NACE MR0103/MR0175, IBR, PMI | |
| Inspection | Third-Party Approved (TPI), IBR, EIL, BV, DNV | |
| Specialized In | Fittings for Power Plants, Petrochemical, Refinery, Thermal, Nuclear, Offshore | |
| Grades | ASTM A182 F1, F5, F9, F11, F22, F91 | |
| Available with IBR, NACE & EIL Approval | ||

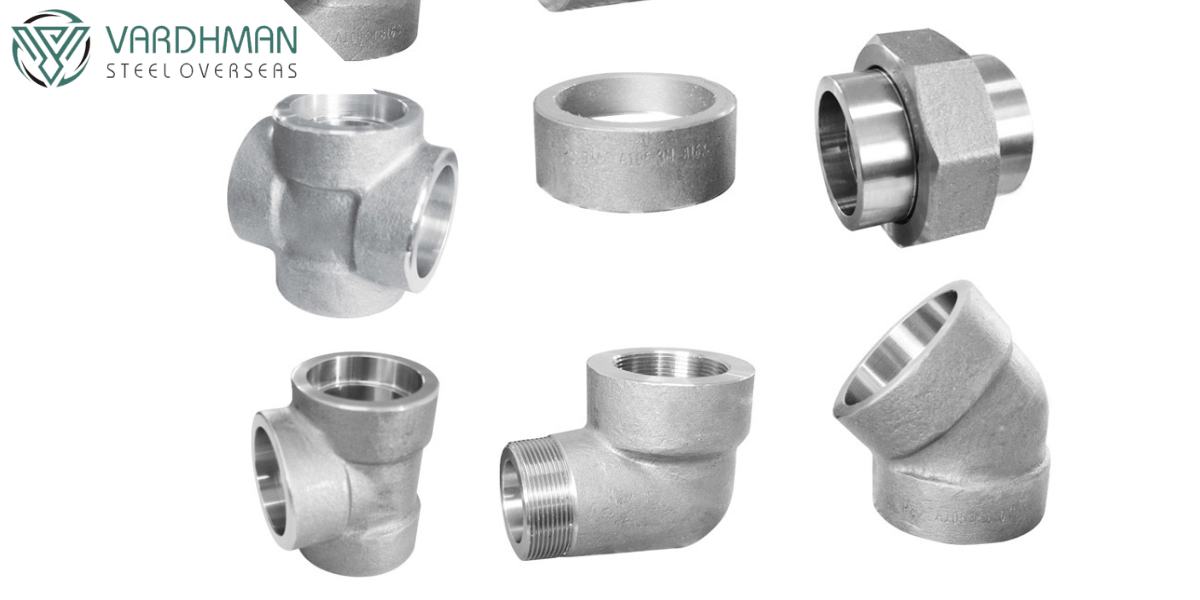

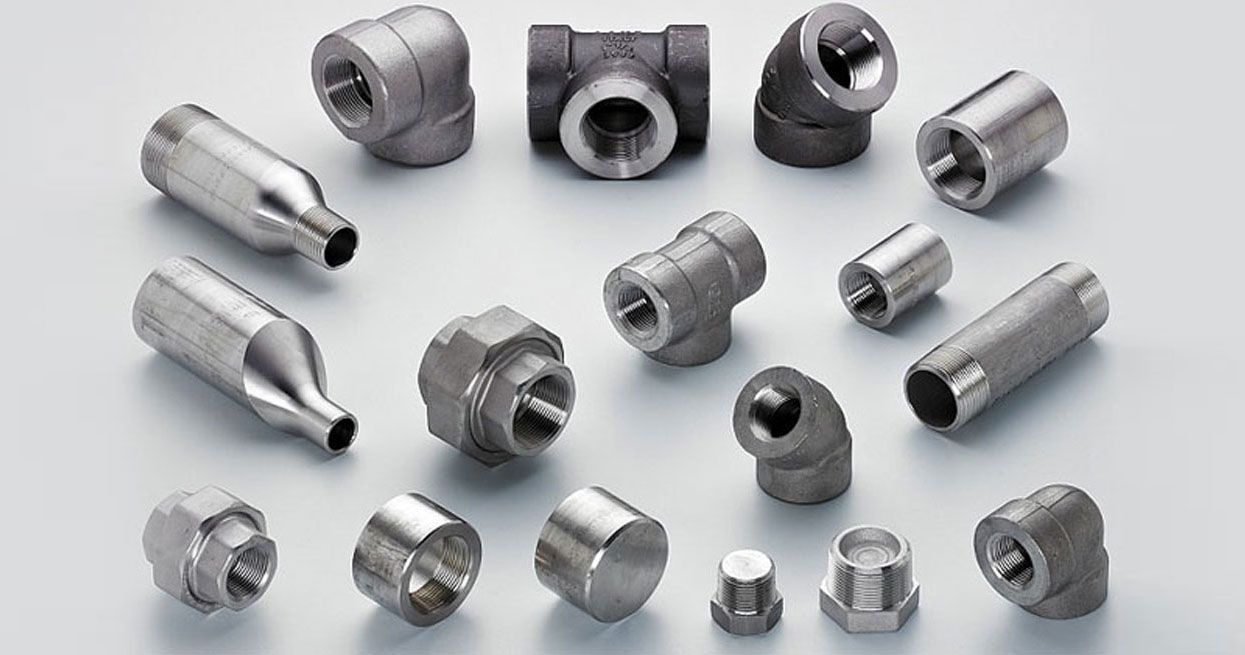

Types of Forged Fittings
Explore our precision-engineered Forged Fittings built for high-pressure and compact piping installations.
Forged Elbow
Available in 45° and 90° angles with Socket Weld & Threaded ends for directional change

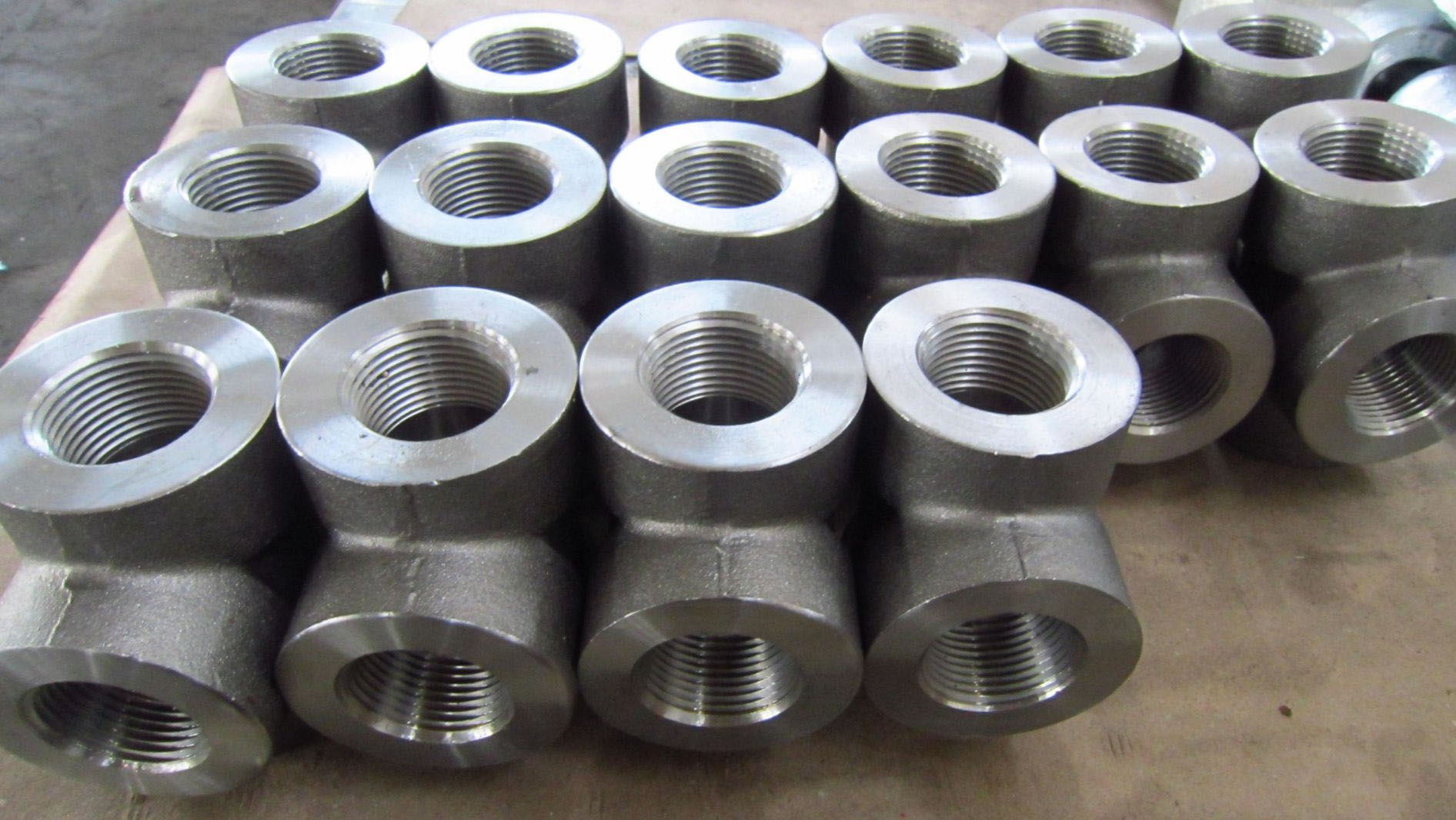

Forged Tee
Used to connect three pipes in T-shaped formation, available in equal and reducing designs
Forged Reducer
Connects pipes of different diameters with secure and pressure-resistant joints
Forged Cap
Seals the end of piping or pressure vessels with high mechanical strength
Forged Stub End
Designed for lap joint flanges in systems needing frequent dismantling
Forged Nipple
Short pipe length with threaded or welded ends for joining valves or fittings
Forged Fittings Dimensions Table (ASME B16.11)
| NPS (in) | Elbow 90° Center to End (mm) | Tee Center to End (mm) | Wall Thickness (mm) | |||||
|---|---|---|---|---|---|---|---|---|
| Class 3000 | Class 6000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 9000 | |
| 1/8 | 16 | 19 | 19 | 22 | 3.8 | 4.1 | 6.1 | 7.5 |
| 1/4 | 19 | 22 | 22 | 25 | 4.0 | 4.3 | 6.6 | 8.0 |
| 3/8 | 21 | 25 | 25 | 29 | 4.5 | 4.8 | 7.1 | 8.6 |
| 1/2 | 25 | 29 | 29 | 35 | 5.3 | 5.6 | 8.1 | 9.7 |
| 3/4 | 29 | 35 | 35 | 41 | 5.8 | 6.1 | 8.6 | 10.2 |
| 1 | 38 | 41 | 41 | 51 | 6.3 | 6.6 | 9.1 | 10.7 |
| 1 1/4 | 44 | 51 | 51 | 60 | 6.7 | 7.0 | 9.6 | 11.2 |
| 1 1/2 | 51 | 60 | 60 | 64 | 7.3 | 7.6 | 10.2 | 12.0 |
| 2 | 60 | 64 | 64 | 67 | 7.8 | 8.1 | 11.2 | 13.3 |
| 2 1/2 | 76 | 83 | 83 | 86 | 8.8 | 9.1 | 12.7 | 14.8 |
| 3 | 86 | 95 | 95 | 99 | 9.3 | 9.6 | 13.7 | 15.9 |
| 4 | 106 | 114 | 114 | 118 | 10.9 | 11.2 | 15.7 | 18.0 |
Features & Benefits
Our premium Alloy Steel Forged Fittings are designed for critical industrial operations, offering superior strength, high temperature resistance, and excellent durability. Vardhman Steel Overseas supplies fittings in grades like ASTM A182 F1, F5, F9, F11, F22, F91, widely used in power, petrochemical, and refinery applications.
- High Temperature Tolerance – Ideal for steam, heat exchanger, and power plant use.
- Excellent Creep & Stress Resistance – Designed for long-life service in extreme environments.
- Variety of Grades – ASTM A182 F1, F5, F9, F11, F22, F91.
- Leak-Free Connection – Socket weld or threaded for secure fitment.
- Compliant with IBR & NACE – Suitable for boiler and sour service duties.
- Available in Class 2000 / 3000 / 6000 / 9000 – For low to ultra-high pressure systems.
- Corrosion & Oxidation Resistance – Withstand aggressive media and high-temp oxidation.
- Precision Machining – Conforms to ASME B16.11 & MSS-SP standards.
- Fast Delivery – Ready inventory of key sizes and configurations.
- Supports Socket Weld & Threaded Ends – For custom piping system compatibility.
