Supplier of Stainless Steel ASTM A182 Forged Fitting

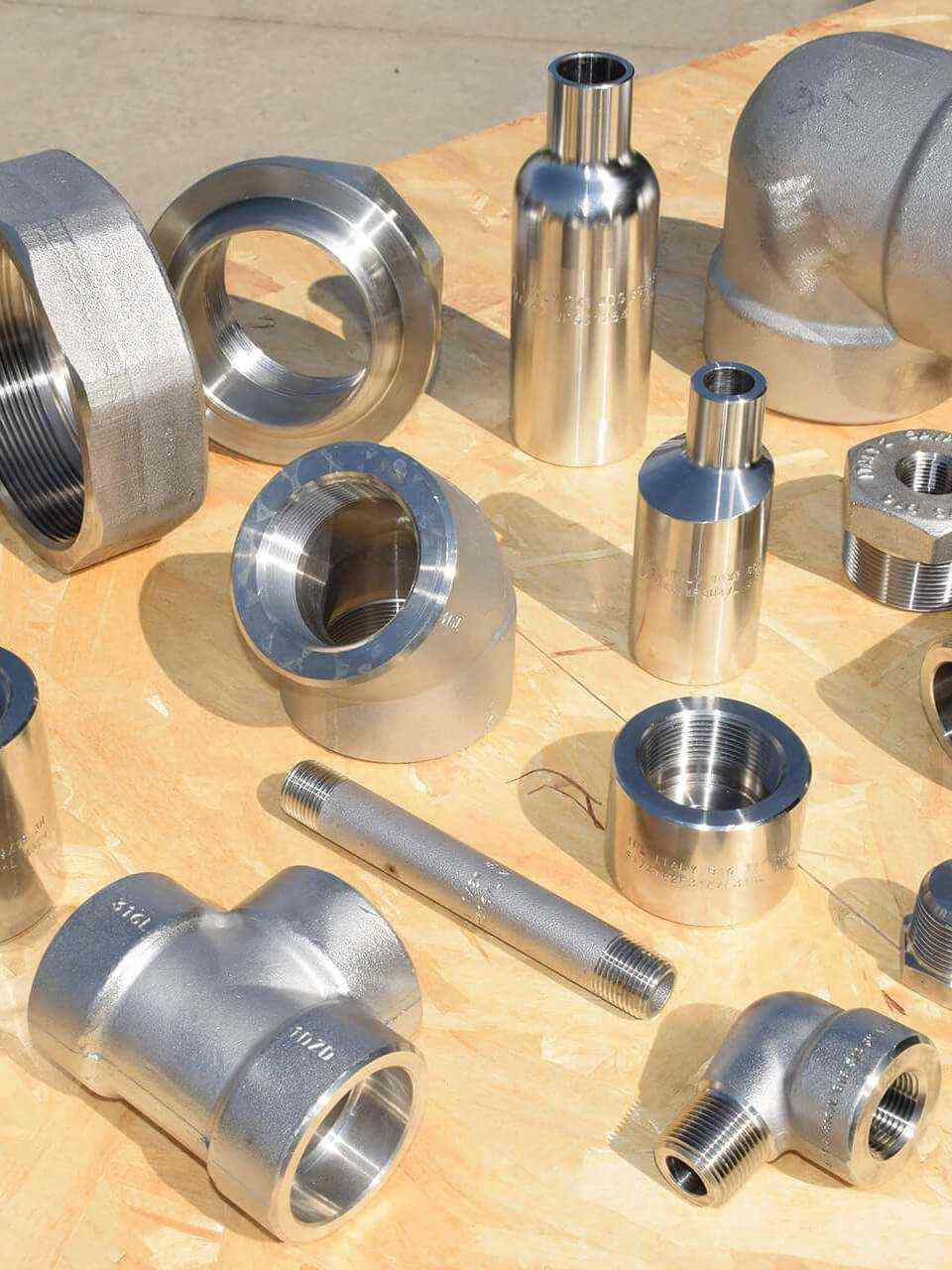

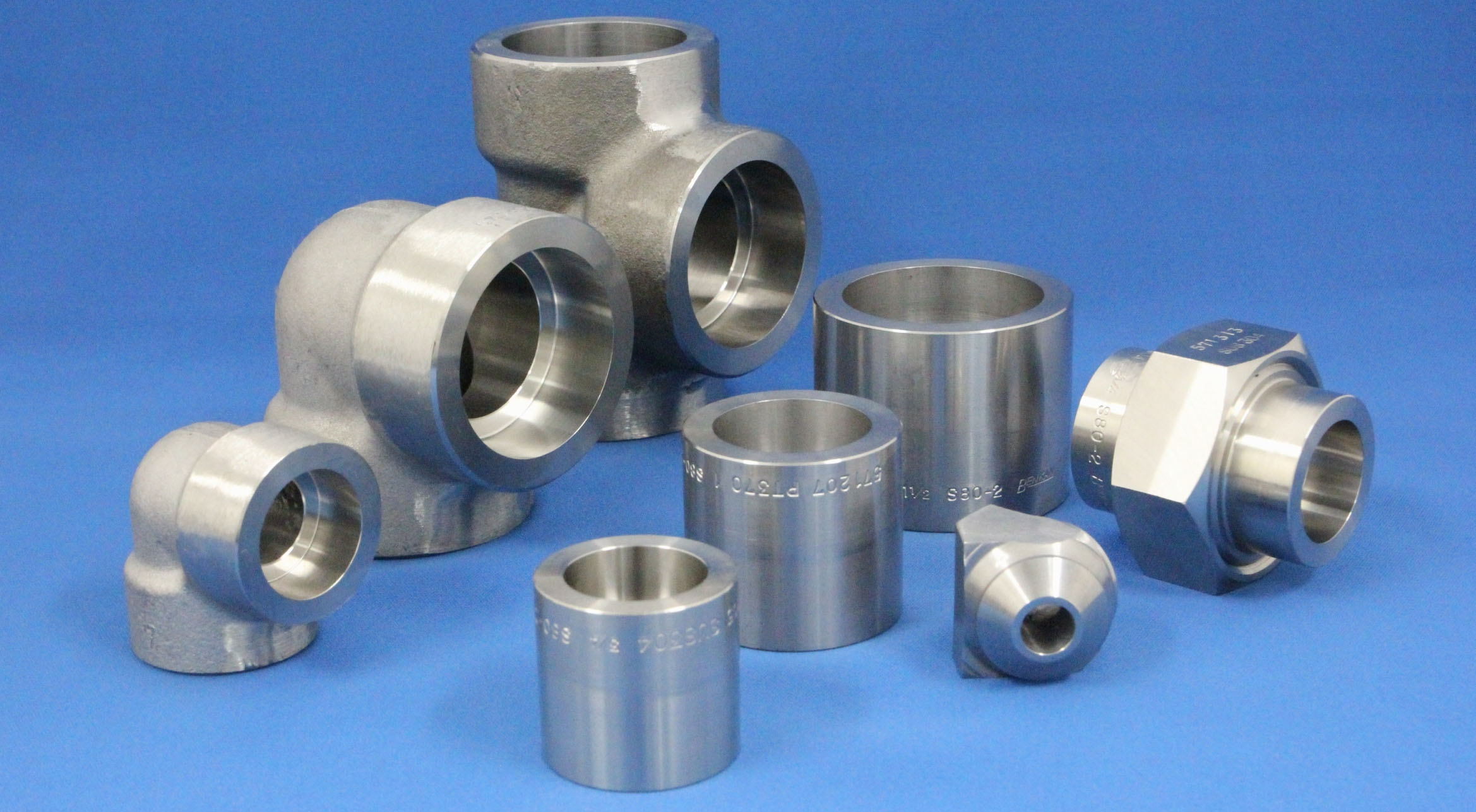

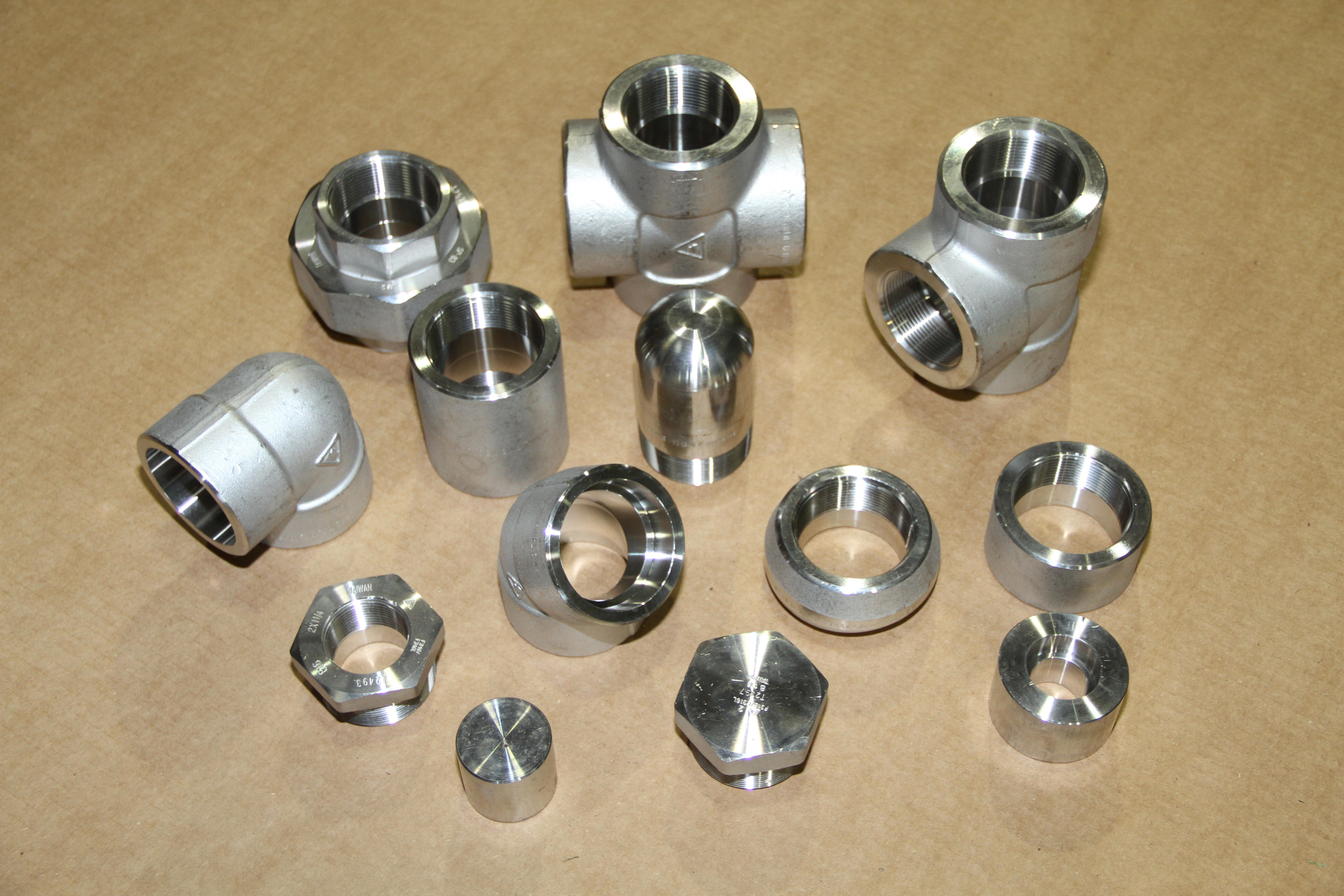

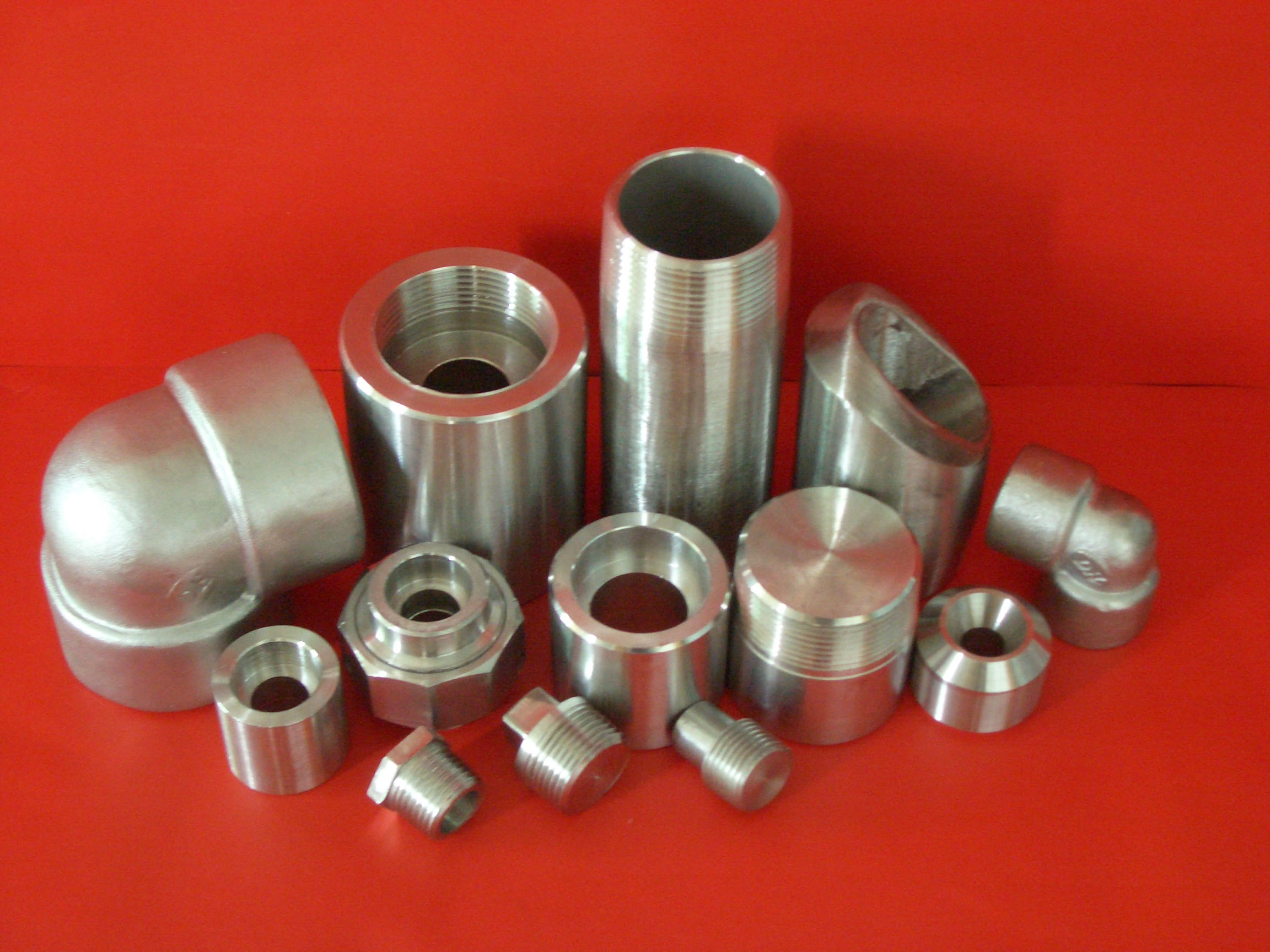

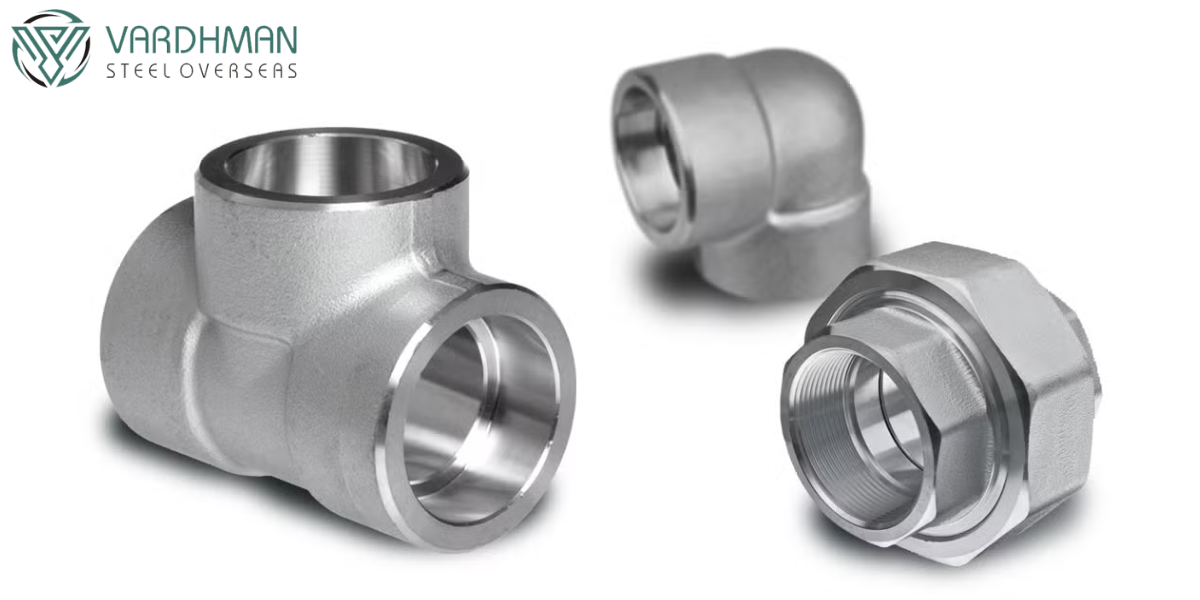

At Vardhman Steel Overseas, we are a leading manufacturer and exporter of Stainless Steel Forged Pipe Fittings in India, offering a comprehensive range of elbows, tees, couplings, nipples, unions, bushings, and plugs designed for high-pressure piping systems. Our forged fittings are produced using premium-grade materials such as SS 304, 304L, 316, 316L, 321, 347, and 904L stainless steels, ensuring superior corrosion resistance, mechanical strength, and thermal stability even in harsh environments. These fittings are manufactured in accordance with global standards like ASME B16.11, MSS SP-79, MSS SP-83, and ASTM A182, making them ideal for applications in oil & gas, petrochemicals, power plants, pharmaceutical, food processing, and marine industries. Available in pressure classes such as Class 2000, 3000, 6000, and 9000, each fitting is precision-machined and rigorously tested to ensure leak-proof connections and long-term performance. At Vardhman Steel Overseas, we deliver top-tier stainless steel forged fittings customized to meet demanding project specifications with consistent quality and reliability.
Stainless Steel Forged Fitting Specification
| Specification | Details / Grades | Available Types |
|---|---|---|
| Standard | ASTM A182 / ASME SA182 |
|
| Dimensions | ASME B16.11, MSS SP-79, SP-83, SP-95, BS 3799 | |
| Size Range | 1/8" to 4" (DN6 to DN100) | |
| Pressure Class | Class 2000, 3000, 6000, 9000 LBS | |
| Connection Types | Threaded (NPT/BSPT/BSPP), Socket Weld | |
| End Connections | Bevel End, Plain End, Threaded End | |
| Manufacturing Process | Forged, Machined, Heat Treated, Passivated | |
| Test Certificates | EN 10204 3.1 / 3.2, NACE MR0103/MR0175, Radiography, PMI | |
| Inspection | Third-Party Approved (TPI), IBR, EIL | |
| Specialized In | Forged Fittings for Oil & Gas, Petrochemical, Power, Food Processing, Marine | |
| Grades | SS 304, 304L, 304H, 316, 316L, 316Ti, 317, 317L, 310, 310S, 321, 347, 904L | |
| Available with IBR, NACE & EIL Approval | ||
Types of Forged Fittings
Explore our precision-engineered Forged Fittings built for high-pressure and compact piping installations.
Forged Elbow
Available in 45° and 90° angles with Socket Weld & Threaded ends for directional change
Forged Tee
Used to connect three pipes in T-shaped formation, available in equal and reducing designs
Forged Reducer
Connects pipes of different diameters with secure and pressure-resistant joints
Forged Cap
Seals the end of piping or pressure vessels with high mechanical strength
Forged Stub End
Designed for lap joint flanges in systems needing frequent dismantling
Forged Nipple
Short pipe length with threaded or welded ends for joining valves or fittings
Forged Fittings Dimensions Table (ASME B16.11)
| NPS (in) | Elbow 90° Center to End (mm) | Tee Center to End (mm) | Wall Thickness (mm) | |||||
|---|---|---|---|---|---|---|---|---|
| Class 3000 | Class 6000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 9000 | |
| 1/8 | 16 | 19 | 19 | 22 | 3.8 | 4.1 | 6.1 | 7.5 |
| 1/4 | 19 | 22 | 22 | 25 | 4.0 | 4.3 | 6.6 | 8.0 |
| 3/8 | 21 | 25 | 25 | 29 | 4.5 | 4.8 | 7.1 | 8.6 |
| 1/2 | 25 | 29 | 29 | 35 | 5.3 | 5.6 | 8.1 | 9.7 |
| 3/4 | 29 | 35 | 35 | 41 | 5.8 | 6.1 | 8.6 | 10.2 |
| 1 | 38 | 41 | 41 | 51 | 6.3 | 6.6 | 9.1 | 10.7 |
| 1 1/4 | 44 | 51 | 51 | 60 | 6.7 | 7.0 | 9.6 | 11.2 |
| 1 1/2 | 51 | 60 | 60 | 64 | 7.3 | 7.6 | 10.2 | 12.0 |
| 2 | 60 | 64 | 64 | 67 | 7.8 | 8.1 | 11.2 | 13.3 |
| 2 1/2 | 76 | 83 | 83 | 86 | 8.8 | 9.1 | 12.7 | 14.8 |
| 3 | 86 | 95 | 95 | 99 | 9.3 | 9.6 | 13.7 | 15.9 |
| 4 | 106 | 114 | 114 | 118 | 10.9 | 11.2 | 15.7 | 18.0 |
Features & Benefits
Our range of Stainless Steel Forged Fittings is precision-engineered to ensure high strength, pressure resistance, and reliable performance. Vardhman Steel Overseas offers forged elbows, tees, couplings, and more in various grades like 304 / 304L / 316 / 316L / 321 / 347 / 904L, suitable for critical piping systems in oil & gas, petrochemicals, power, and other industries.
- High Pressure & Temperature Resistance – Ideal for extreme industrial applications.
- Forged for Superior Strength – Ensures durability and fatigue resistance.
- Wide Material Selection – Includes 304, 304L, 316, 316L, 321, 347, 904L, and more.
- Leak-Proof Connections – Precision threading or socket weld ends for secure joints.
- IBR & NACE Compliant – Certified fittings for boiler and sour service conditions.
- Available in Class 2000 / 3000 / 6000 / 9000 – Covers wide pressure rating requirements.
- Corrosion & Oxidation Resistant – Ideal for chemical, oilfield, and refinery use.
- Accurate Machining & Threads – Ensures compatibility with ASME / ANSI pipe systems.
- Ready Inventory – Available in standard and custom sizes for immediate dispatch.
- Suitable for Socket Weld & Threaded Connections – Flexible for diverse installation needs.
