Supplier of Carbon Steel ASTM A105 Forged Fitting

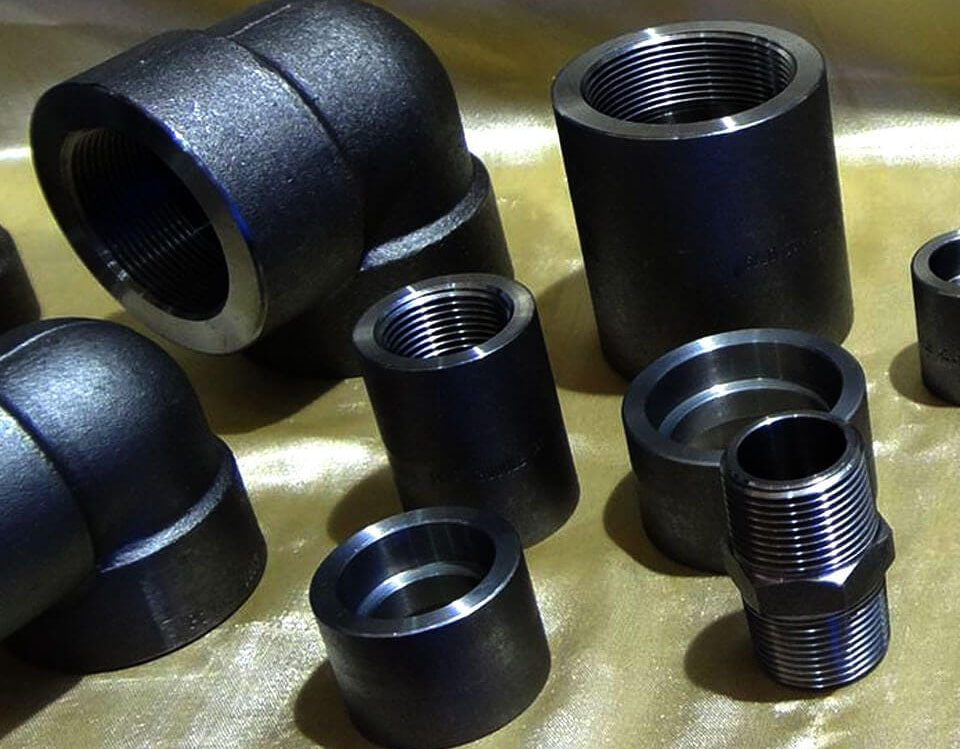

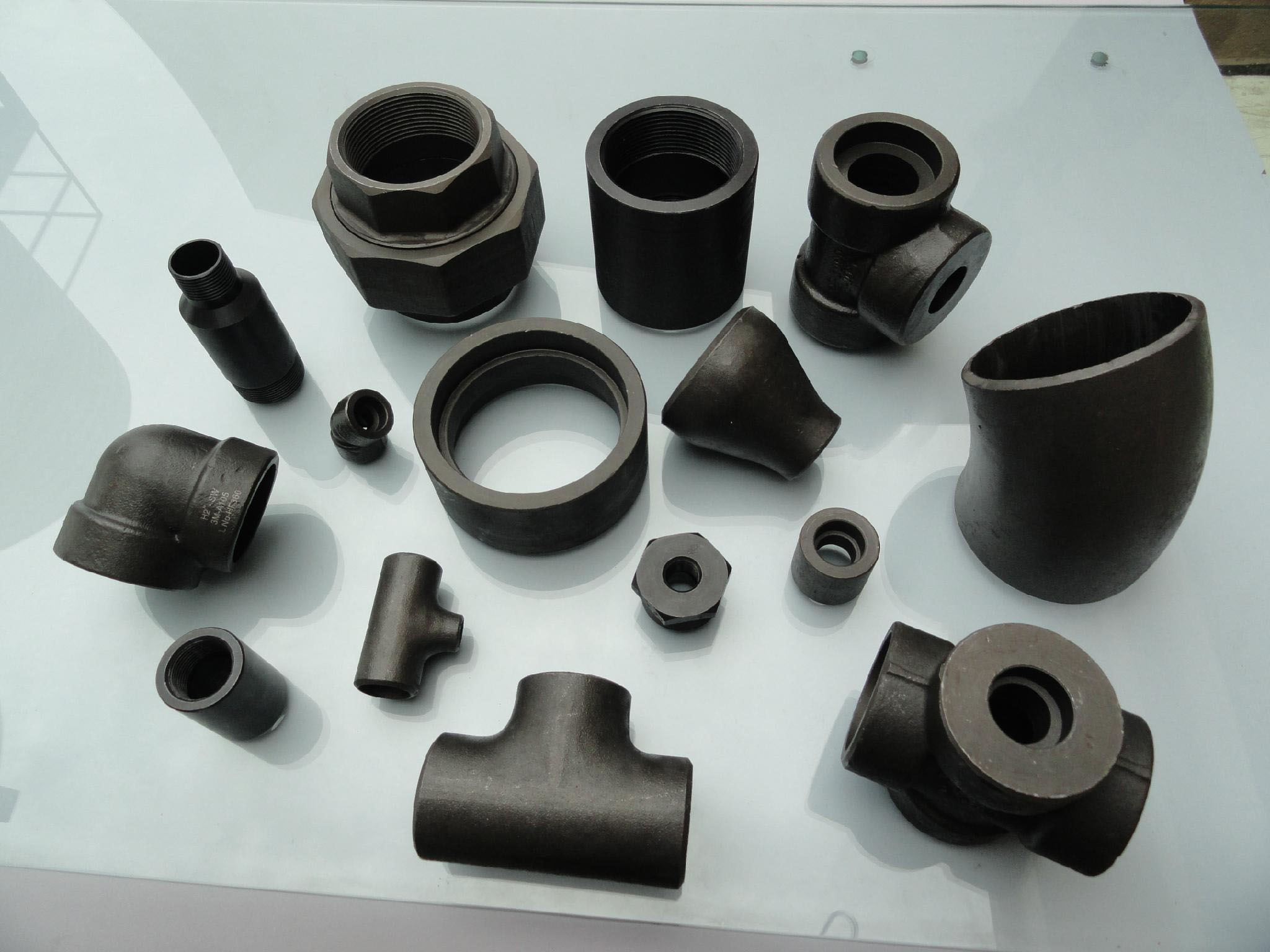

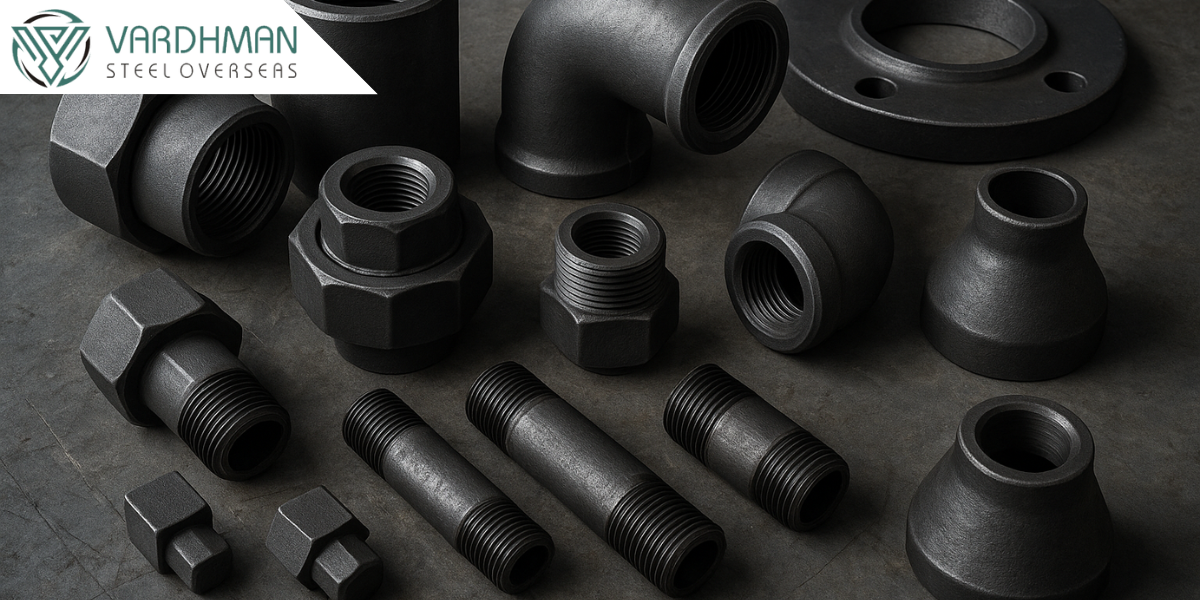

At Vardhman Steel Overseas, we are a trusted manufacturer and exporter of Carbon Steel Forged Pipe Fittings in India, offering a complete range of elbows, tees, unions, nipples, couplings, bushings, and plugs for high-pressure piping applications. Our forged fittings are manufactured from high-quality carbon steel grades such as ASTM A105, A350 LF2, and A694 F42 / F52 / F60 / F65 / F70, known for their exceptional mechanical strength, impact resistance, and dimensional stability. Engineered for rugged industrial systems, these fittings are ideal for high-temperature and high-pressure applications across various sectors, including oil & gas, petrochemical, power generation, refinery, and shipbuilding industries. Our carbon steel forged fittings are manufactured in accordance with international standards such as ASME B16.11, MSS SP-79, MSS SP-83, and ASTM A105, ensuring dimensional accuracy and high performance. Available in Socket Weld and Threaded (NPT/BSP) configurations, we offer these fittings in various pressure ratings including Class 2000, 3000, 6000, and 9000. Each fitting undergoes stringent quality testing, including hydro testing, ultrasonic testing, and chemical analysis to meet industry compliance and guarantee long service life. At Vardhman Steel Overseas, we are committed to providing durable and reliable carbon steel forged fittings tailored to suit critical project requirements with timely delivery and consistent quality.
Carbon Steel Forged Fitting Specification
| Specification | Details / Grades | Available Types |
|---|---|---|
| Standard | ASTM A105 / A350 LF2 / A694 F42 to F70 |
|
| Dimensions | ASME B16.11, MSS SP-79, SP-83, SP-95, BS 3799 | |
| Size Range | 1/8" to 4" (DN6 to DN100) | |
| Pressure Class | Class 2000, 3000, 6000, 9000 LBS | |
| Connection Types | Threaded (NPT/BSPT), Socket Weld | |
| End Connections | Bevel End, Plain End, Threaded End | |
| Manufacturing Process | Forged, Machined, Normalized, Heat Treated | |
| Test Certificates | EN 10204 3.1 / 3.2, NACE MR0103/MR0175, IBR, PMI | |
| Inspection | Third-Party Approved (TPI), IBR, EIL, BV, DNV | |
| Specialized In | Fittings for Oil & Gas, Petrochemical, Refinery, Power, Shipbuilding | |
| Grades | ASTM A105, A350 LF2 CL1/CL2, A694 F42 / F46 / F52 / F60 / F65 / F70 | |
| Available with IBR, NACE & EIL Approval | ||
Types of Forged Fittings
Explore our precision-engineered Forged Fittings built for high-pressure and compact piping installations.

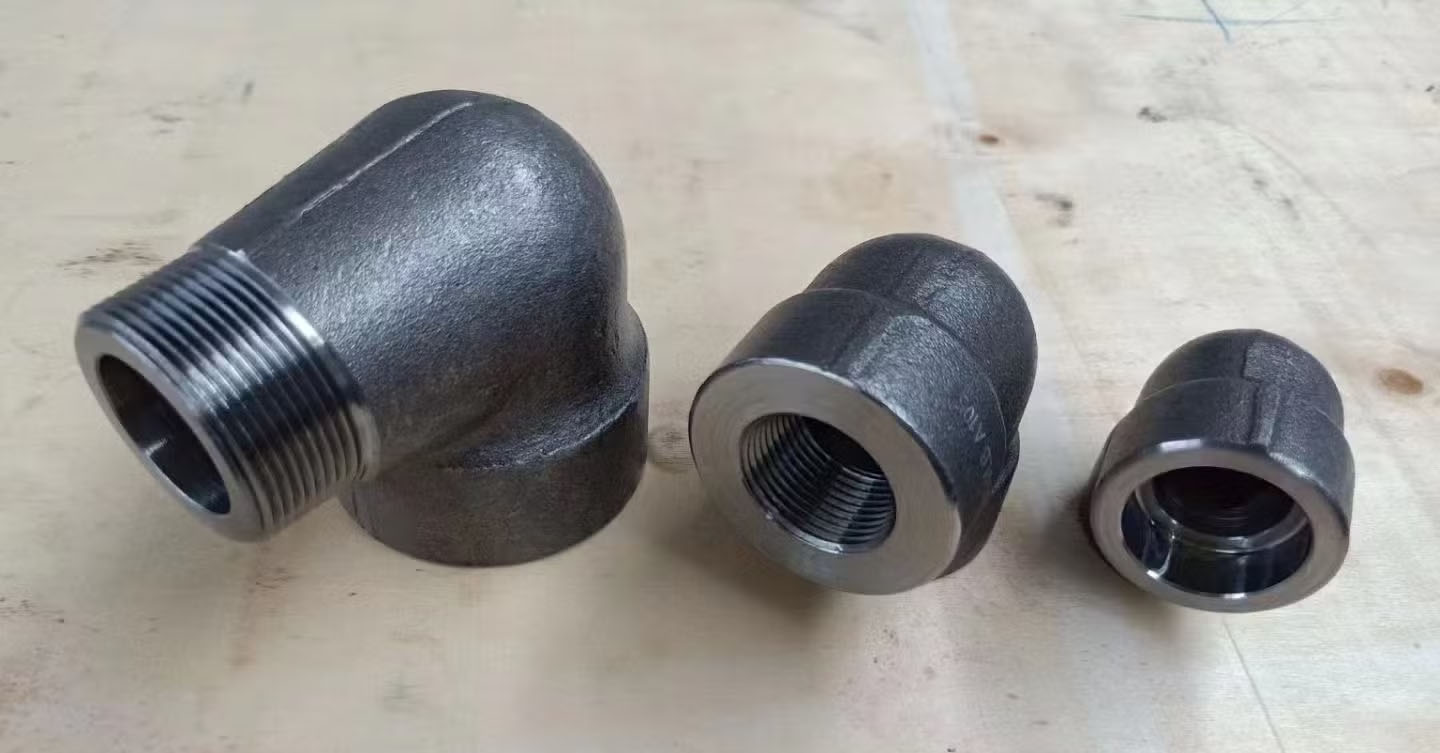

Forged Elbow
Available in 45° and 90° angles with Socket Weld & Threaded ends for directional change

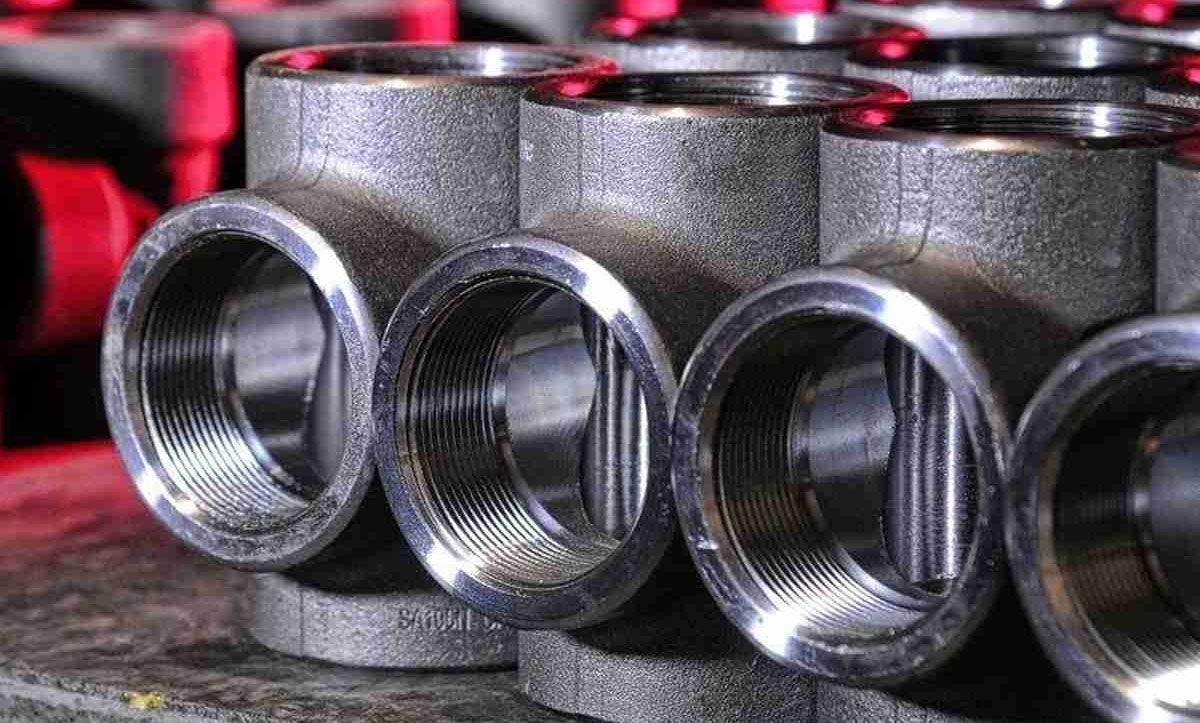

Forged Tee
Used to connect three pipes in T-shaped formation, available in equal and reducing designs
Forged Reducer
Connects pipes of different diameters with secure and pressure-resistant joints
Forged Cap
Seals the end of piping or pressure vessels with high mechanical strength
Forged Stub End
Designed for lap joint flanges in systems needing frequent dismantling
Forged Nipple
Short pipe length with threaded or welded ends for joining valves or fittings
Forged Fittings Dimensions Table (ASME B16.11)
| NPS (in) | Elbow 90° Center to End (mm) | Tee Center to End (mm) | Wall Thickness (mm) | |||||
|---|---|---|---|---|---|---|---|---|
| Class 3000 | Class 6000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 9000 | |
| 1/8 | 16 | 19 | 19 | 22 | 3.8 | 4.1 | 6.1 | 7.5 |
| 1/4 | 19 | 22 | 22 | 25 | 4.0 | 4.3 | 6.6 | 8.0 |
| 3/8 | 21 | 25 | 25 | 29 | 4.5 | 4.8 | 7.1 | 8.6 |
| 1/2 | 25 | 29 | 29 | 35 | 5.3 | 5.6 | 8.1 | 9.7 |
| 3/4 | 29 | 35 | 35 | 41 | 5.8 | 6.1 | 8.6 | 10.2 |
| 1 | 38 | 41 | 41 | 51 | 6.3 | 6.6 | 9.1 | 10.7 |
| 1 1/4 | 44 | 51 | 51 | 60 | 6.7 | 7.0 | 9.6 | 11.2 |
| 1 1/2 | 51 | 60 | 60 | 64 | 7.3 | 7.6 | 10.2 | 12.0 |
| 2 | 60 | 64 | 64 | 67 | 7.8 | 8.1 | 11.2 | 13.3 |
| 2 1/2 | 76 | 83 | 83 | 86 | 8.8 | 9.1 | 12.7 | 14.8 |
| 3 | 86 | 95 | 95 | 99 | 9.3 | 9.6 | 13.7 | 15.9 |
| 4 | 106 | 114 | 114 | 118 | 10.9 | 11.2 | 15.7 | 18.0 |
Features & Benefits
Our high-performance Carbon Steel Forged Fittings are engineered for rugged industrial use, offering exceptional strength, pressure resistance, and performance. Vardhman Steel Overseas supplies fittings in grades like ASTM A105, A350 LF2, A694 F42–F70, designed to withstand high-pressure and high-temperature environments.
- Excellent Mechanical Strength – Built to endure high-stress applications.
- High Pressure & Temperature Resistant – Ideal for oil, gas, power & refineries.
- Versatile Grades – A105, A350 LF2 (Low Temp), A694 F42 to F70.
- Secure Fitment – Threaded or socket weld connections for tight, leak-free joints.
- Compliant with IBR & NACE – Suitable for boiler and sour service applications.
- Available in Class 2000 / 3000 / 6000 / 9000 – Full pressure range options.
- Corrosion-Resistant Options Available – Zinc-coated or phosphate-treated as needed.
- Precision Machining – ASME B16.11 standard compatibility ensured.
- Immediate Delivery – Ready stock in all common sizes and types.
- Supports Socket Weld & Threaded Ends – For flexible piping design & installation.
