Supplier of Stainless Steel ASTM A403 Buttweld Fitting

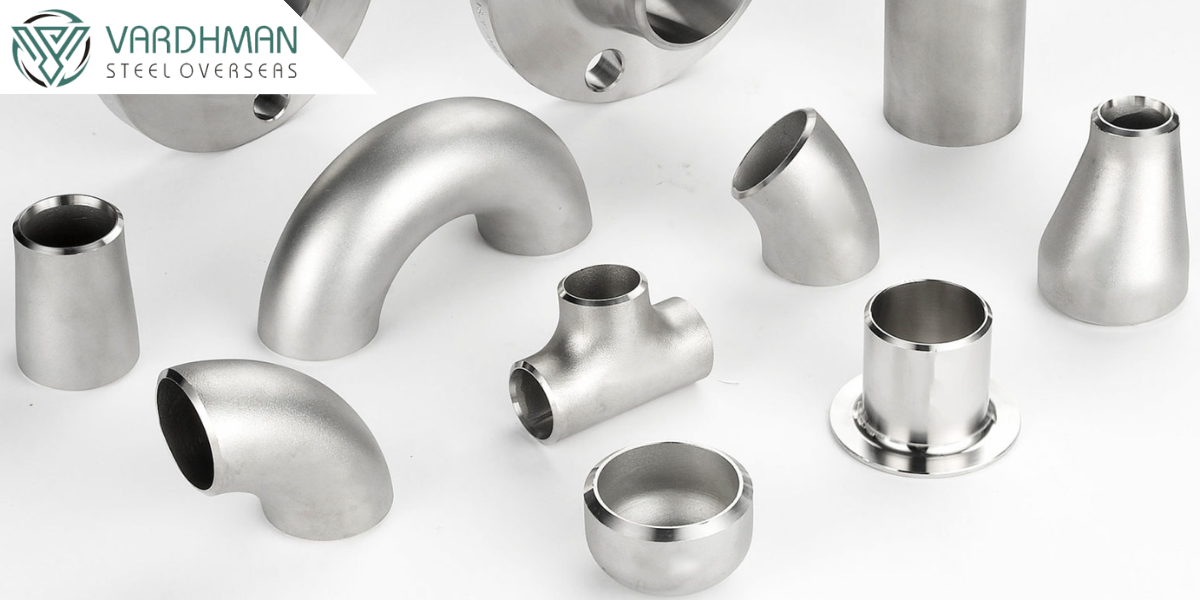

At Vardhman Steel Overseas, we are one of the trusted manufacturers and exporters of Stainless Steel Buttweld Pipe Fittings in India, offering a complete range of elbows, tees, reducers, end caps, and stub ends designed for high-performance flow systems. Our fittings are manufactured using high-grade materials like SS 304, 304L, 316, 316L, 321, 347, and 904L stainless steels, which deliver excellent corrosion resistance, oxidation resistance, and durability under extreme temperatures. These products conform to global standards such as ASME B16.9, MSS SP-43, and ASTM A403, making them suitable for use in chemical processing, oil & gas, power generation, pharmaceutical, dairy, and food processing industries. Each fitting features bevelled ends for superior weldability and is available in schedules ranging from SCH 5 to SCH XXS. With precise manufacturing and strict quality control, Vardhman Steel Overseas ensures top-quality stainless steel buttweld fittings that meet both standard and custom project requirements.
Stainless Steel Buttweld Fitting Specification
| Specification | Details / Grades | Available Types |
|---|---|---|
| Standard | ASTM A403 |
|
| Dimensions | ASME B16.9, B16.28, MSS-SP-43, BS4504, BS1560, BS10 | |
| Size (Seamless) | ½” – 10” | |
| Size (Welded) | ½” – 48” | |
| Size Range | ½” NB to 24” NB in Sch 10s, 40s, 80s, 160s, XXS (DN6~DN100) | |
| Thickness | SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS | |
| Connection | Welding | |
| Type | DN15 – DN1200 | |
| Manufacturing Process | Push, Press, Forge, Cast, etc. | |
| Test Certificates | EN 10204/3.1B, Raw Material Cert., 100% Radiography, Third Party Inspection | |
| Specialized In | Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend | |
| Grades | SS 201, 202, 304, 304L, 304H, 310, 310S, 316, 316L, 316H, 317, 317L, 321, 321H, 347, 347H, 446, 904L | |
| EIL & IBR Approved Fittings | ||

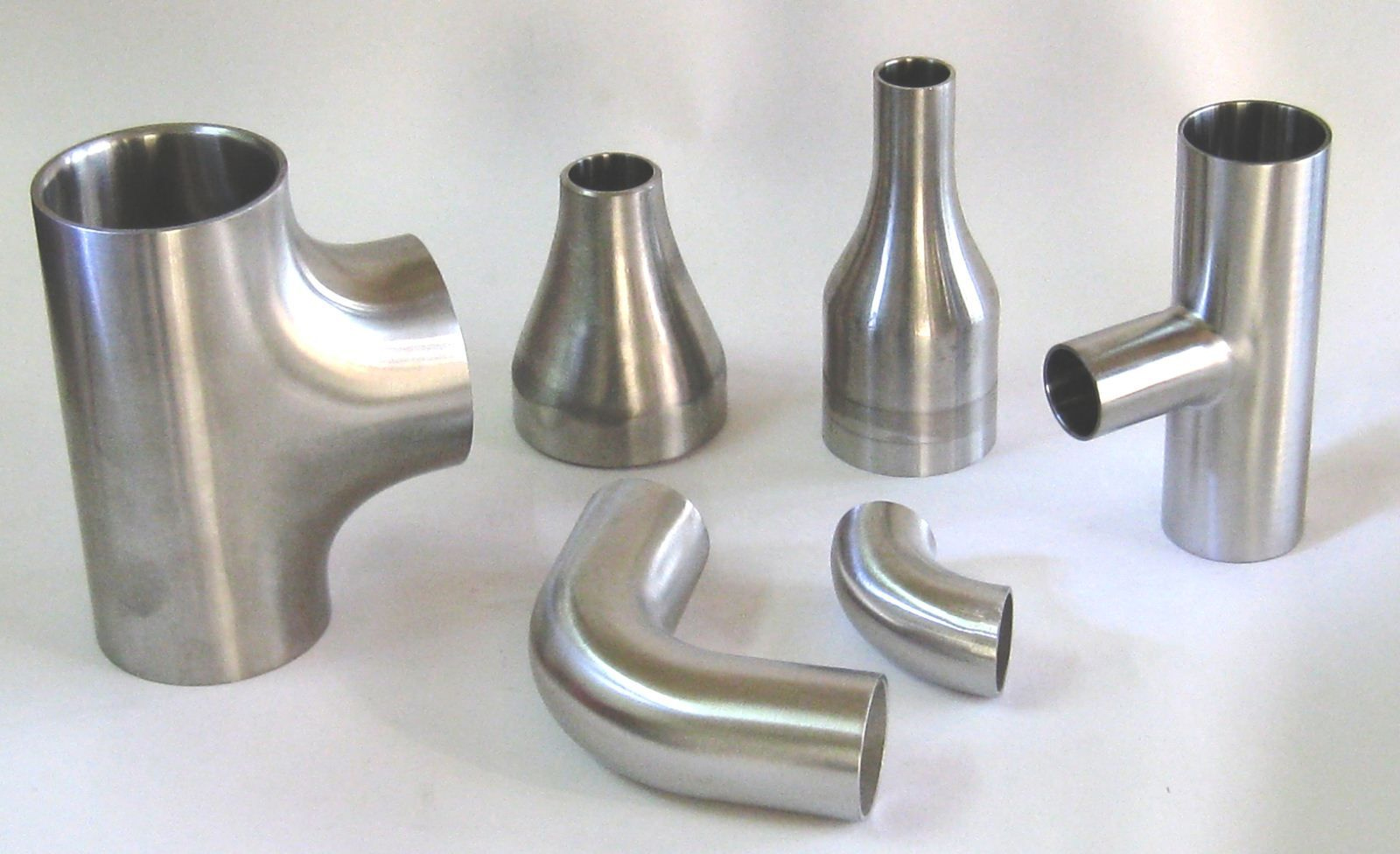

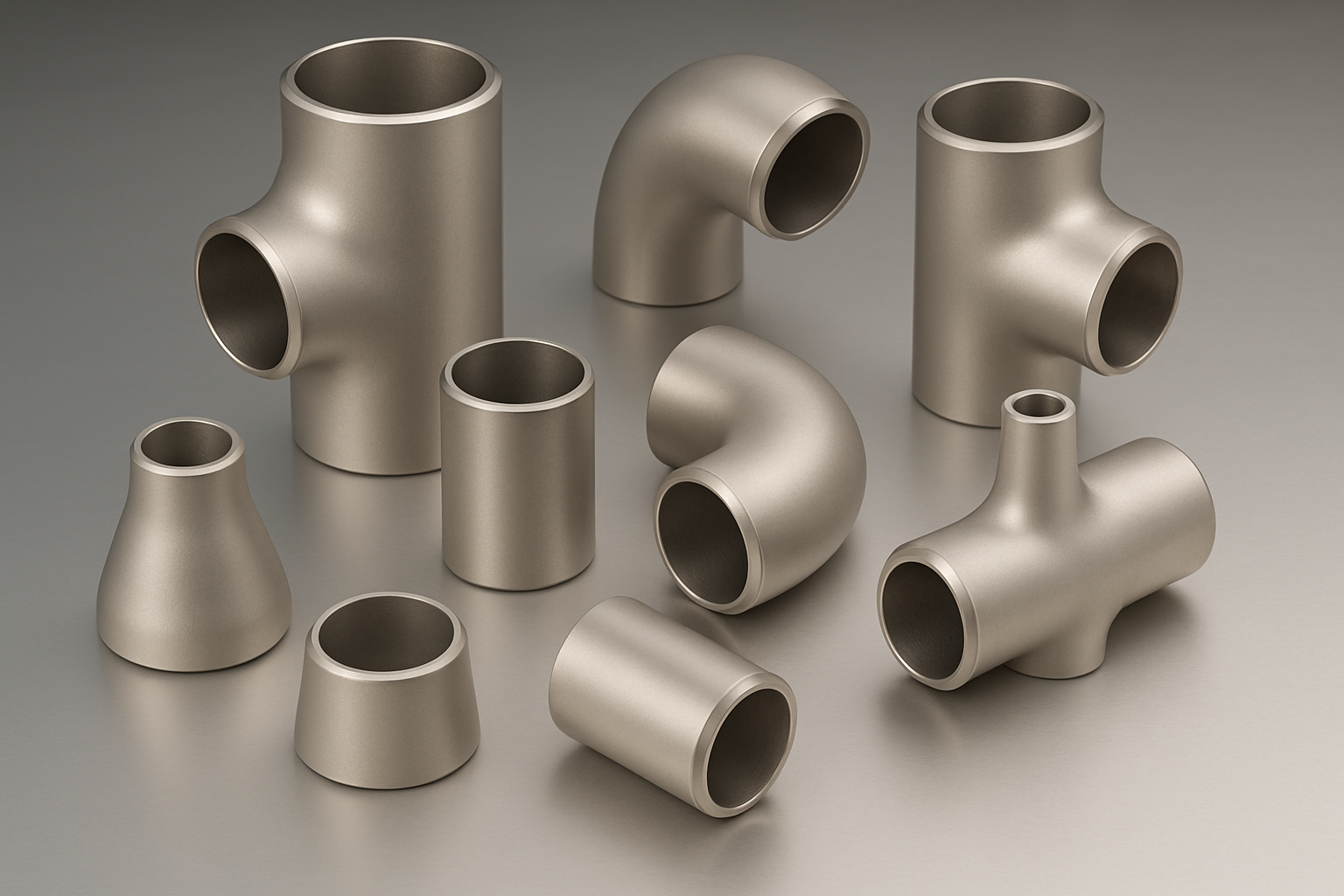

Types of Buttweld Fittings
Explore our precision-engineered Buttweld Fittings designed for leak-proof and high-strength piping systems.

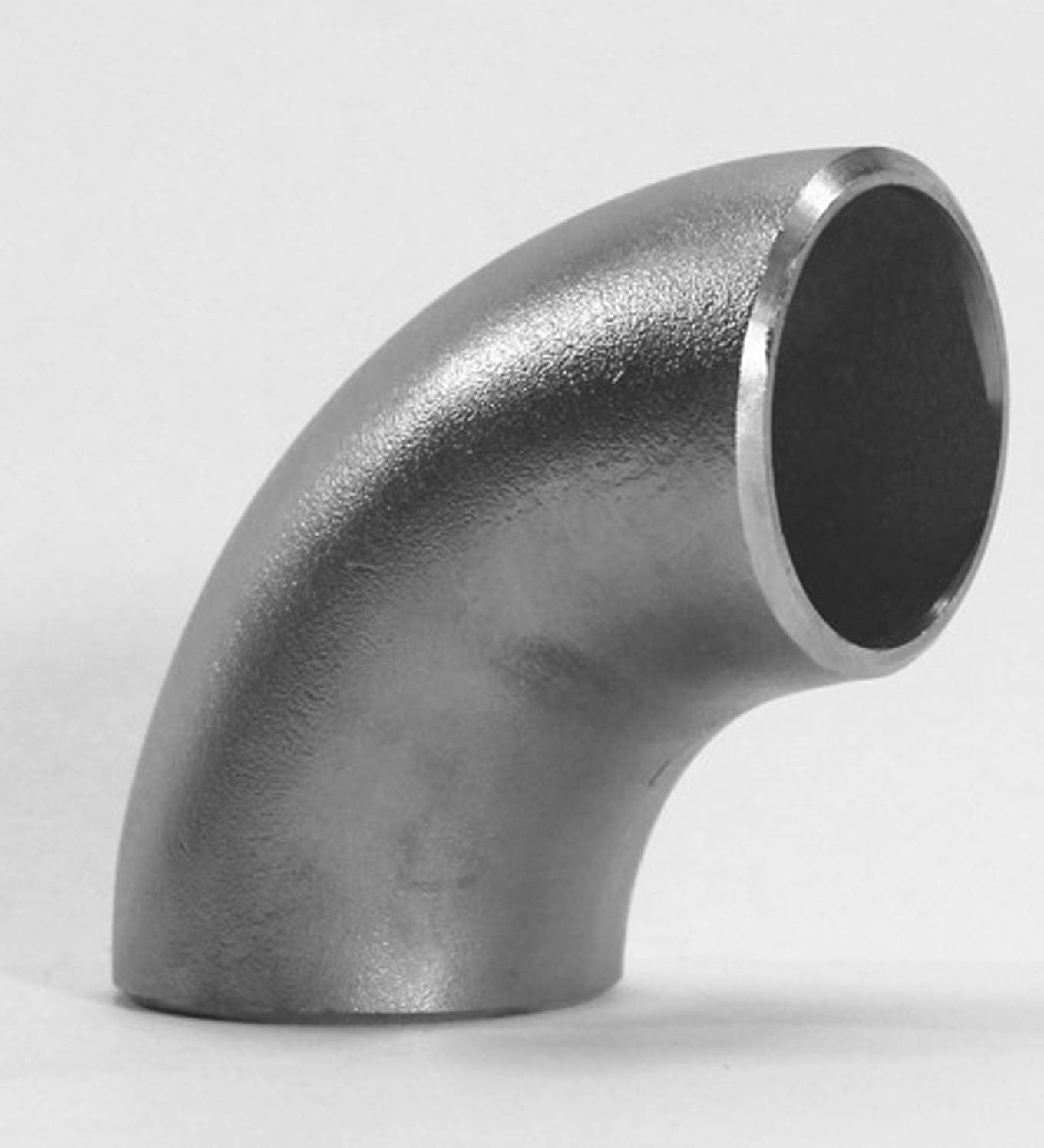

Buttweld Elbow
Elbows allow directional changes in piping systems, available in 45°, 90°, and 180° bends for smooth fluid flow with minimal pressure loss.

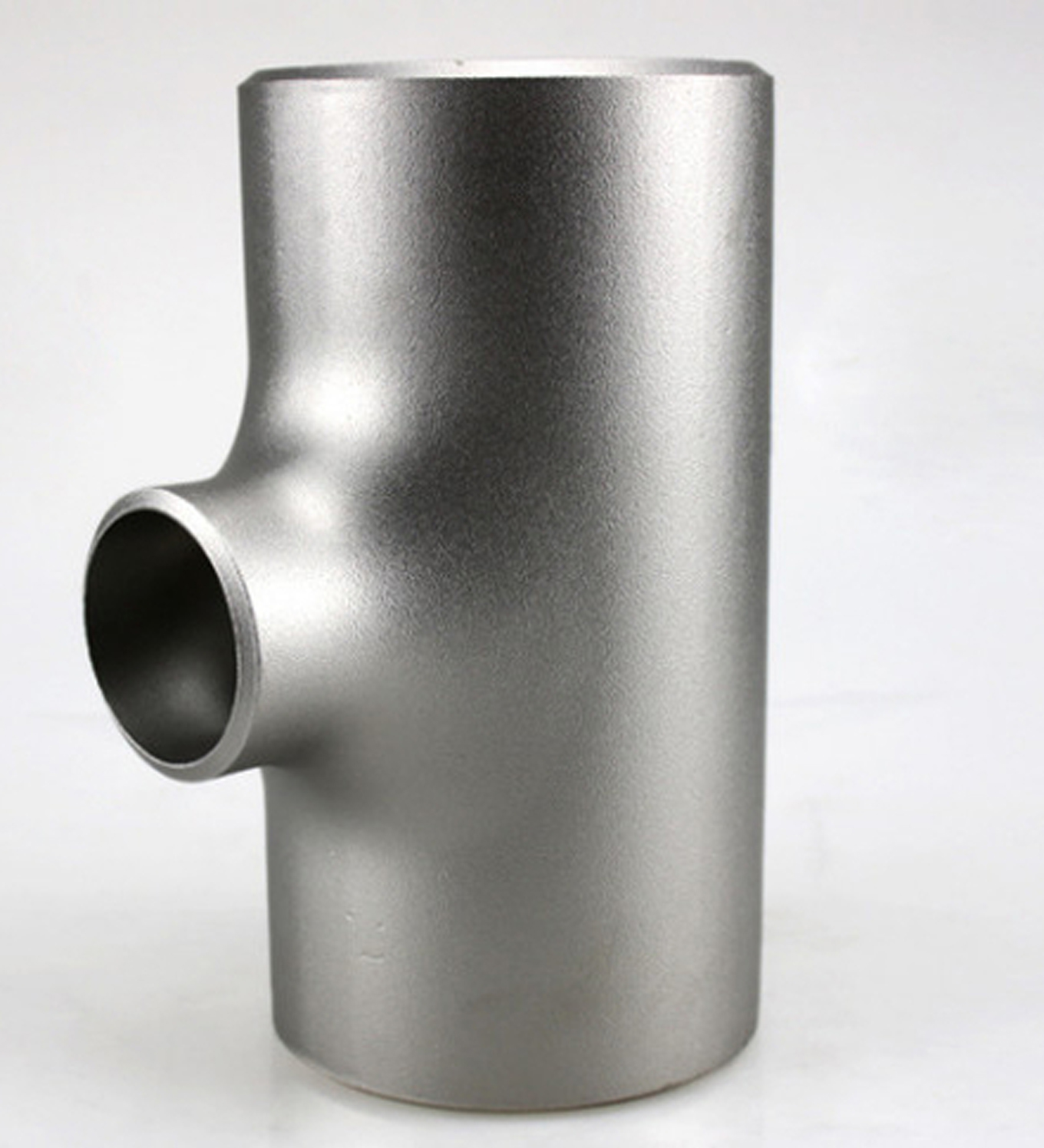

Buttweld Tee
Tees are used to split or combine flow in pipelines, offered in equal and reducing types for
multiple outlet configurations.

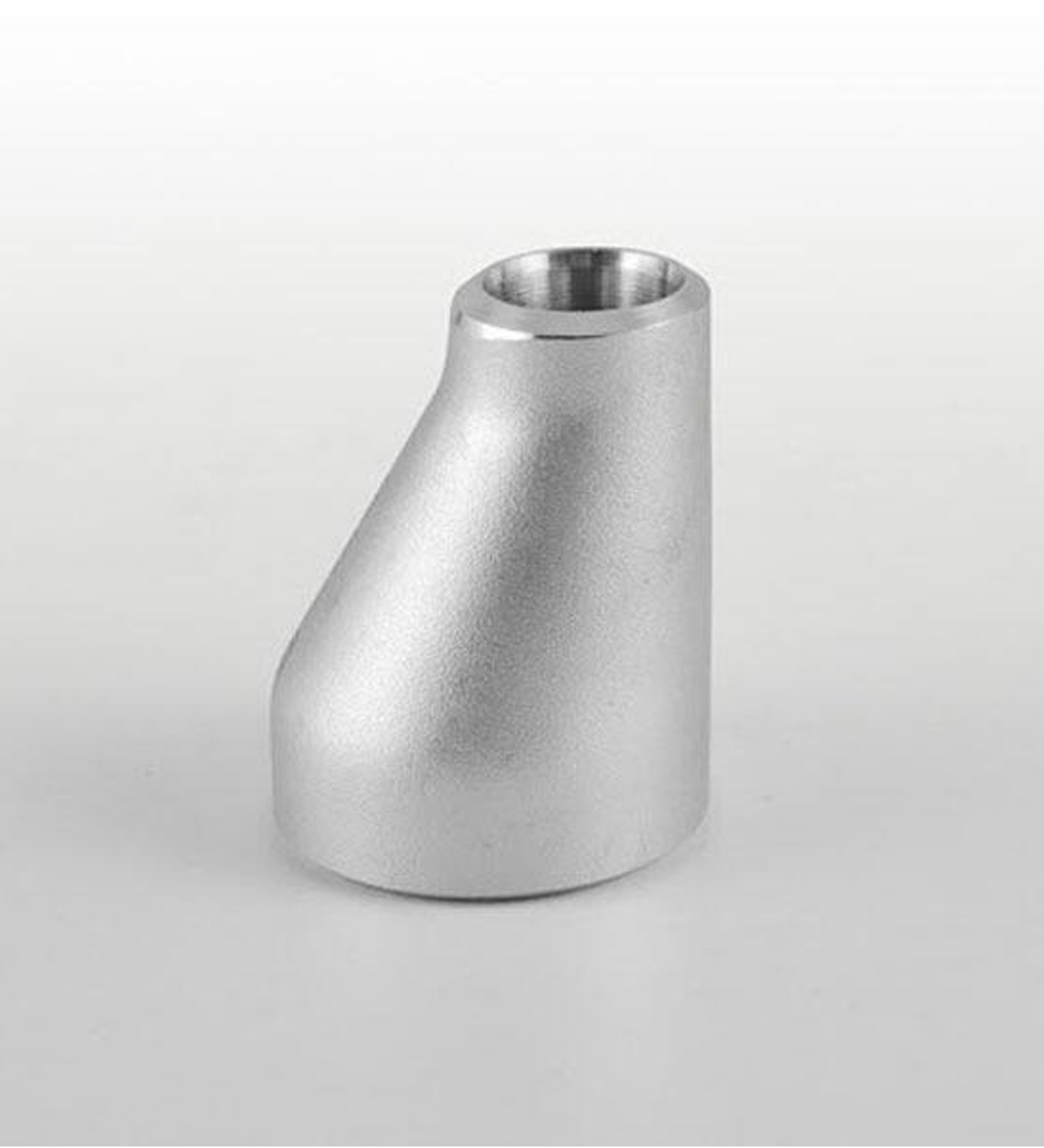

Buttweld Reducer
Reducers transition between pipe sizes, available in concentric (center-aligned) and eccentric (offset) types to manage flow and avoid turbulence.

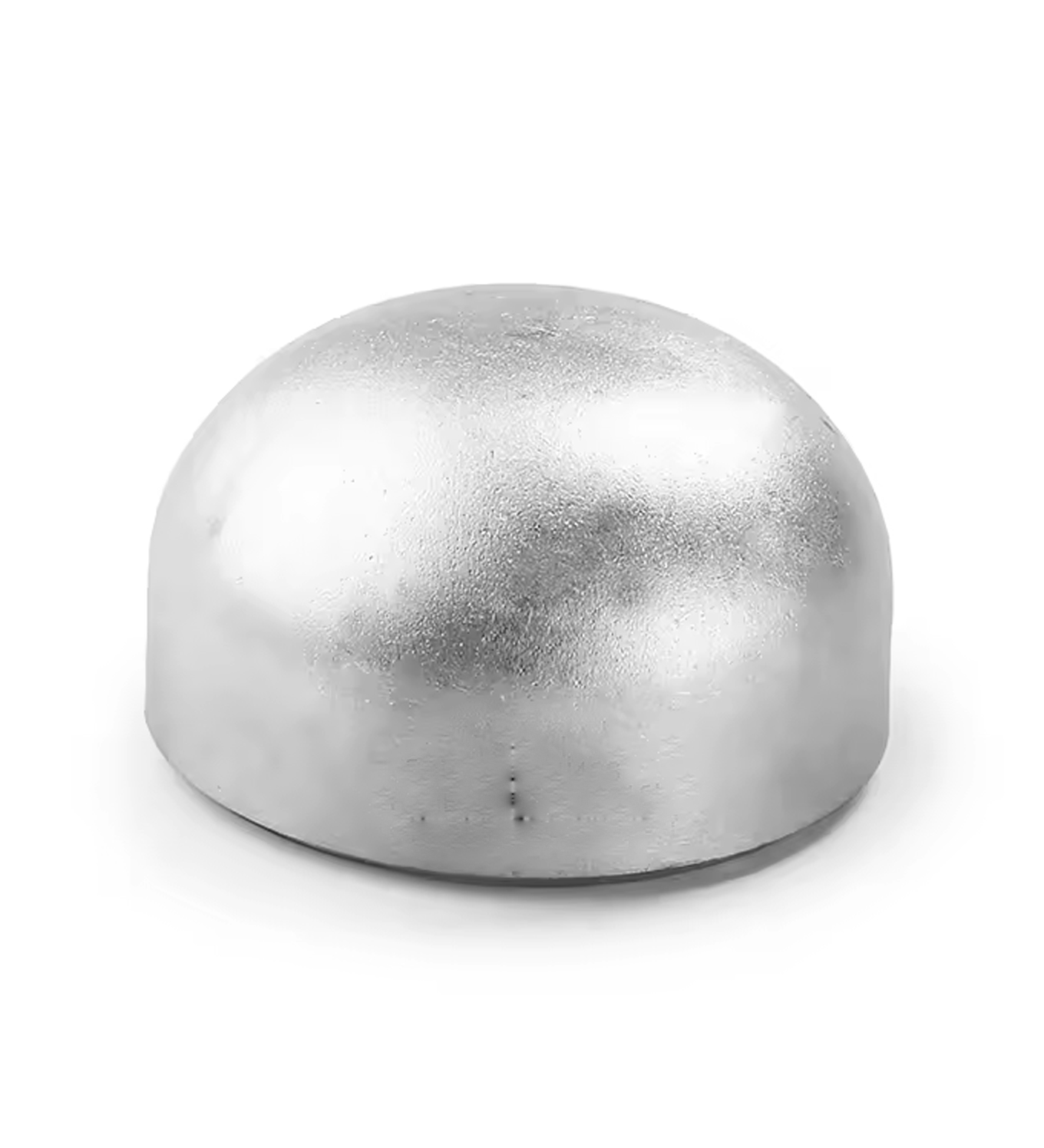

Buttweld Cap
End caps are used to block the end of a piping system, providing secure sealing in high-pressure and high-temperature conditions.

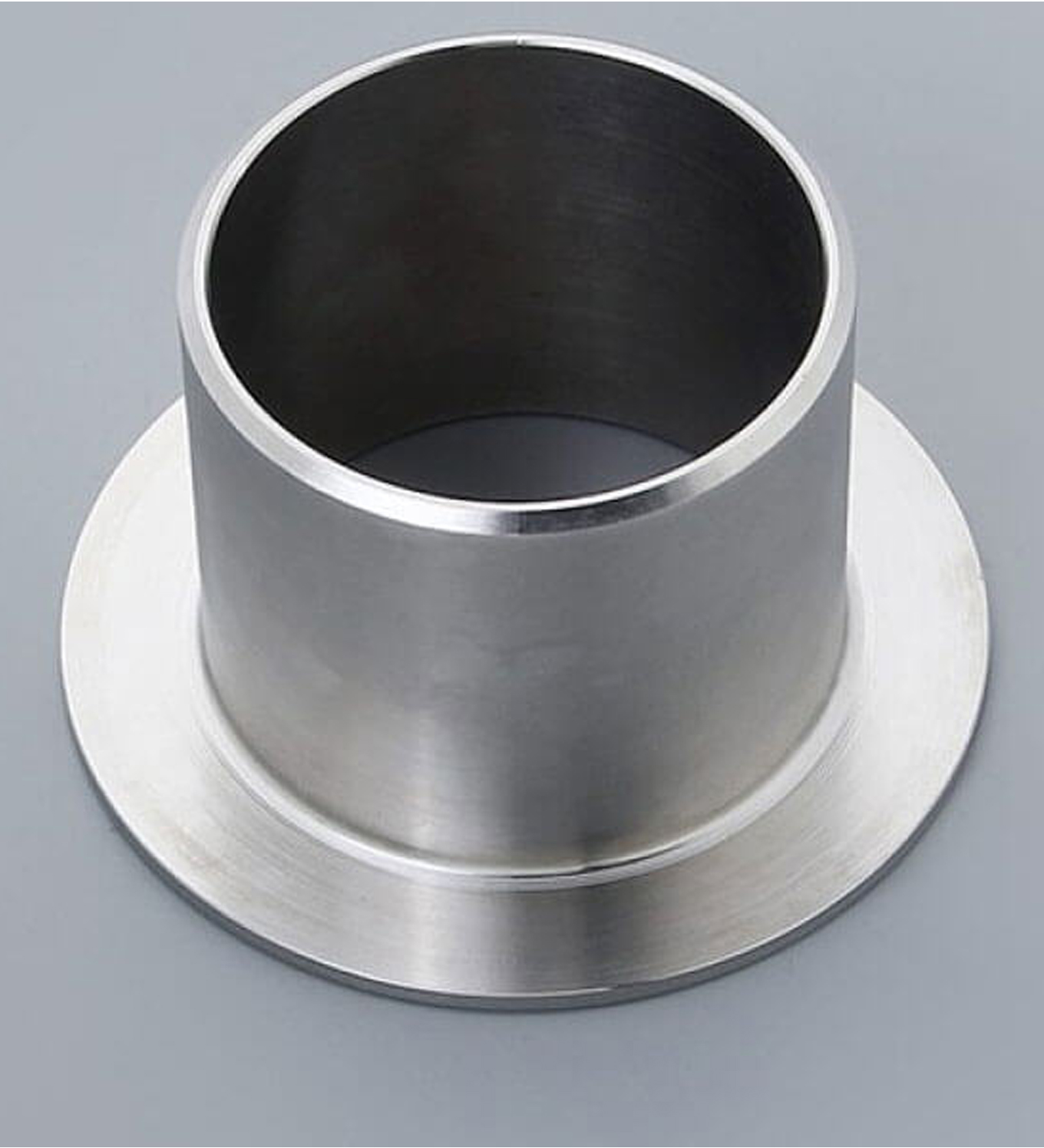

Buttweld Stub End
Stub ends are used with lap joint flanges, making them ideal for systems requiring frequent dismantling for inspection or maintenance.
Buttweld Nipple
Nipples are short pieces of pipe with bevelled ends used for connecting fittings, valves, or
other equipment in tight spaces.
Stainless Steel Weld Fittings Dimensions Standard
| Nominal Pipe Size |
Outside Diameter |
Caps | Straight Tees | Straight Crosses | Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Capacity of ASTM A403 Grade WP304 Pipe Fittings
| Product | Size* | Wall Thickness** | Seamless | Welded | |||||||||||||||||||||
| Elbow | 1/2"-24" | SCH10S~XXS | √ | √ | |||||||||||||||||||||
| 8"-104" | SCH5S~80S/XS | √ | |||||||||||||||||||||||
| Tee | 1/2"-24" | SCH10S~XXS | √ | √ | |||||||||||||||||||||
| 8"-104" | SCH5S~80S/XS | √ | |||||||||||||||||||||||
| Reducer | 1/2"-24" | SCH10S~XXS | √ | √ | |||||||||||||||||||||
| 8"-104" | SCH5S~80S/XS | √ | |||||||||||||||||||||||
| Cap | 1/2"-80" | SCH10S~SCH160 | √ | ||||||||||||||||||||||
| Lap Joint Stub End | 1/2"-24" | SCH5S~80S/XS | √ | √ | |||||||||||||||||||||
| 8"-80" | SCH5S~80S/XS | √ | |||||||||||||||||||||||
Features & Benefits
Our premium range of Stainless Steel Buttweld Fittings is engineered for reliable performance across critical industrial applications. At Vardhman Steel Overseas, we offer fittings in various sizes and grades like 304 / 304L / 316 / 316L / 321 / 347 / 904L, ensuring superior corrosion resistance, durability, and dimensional accuracy.
- High Corrosion Resistance – Ideal for chemical, marine, and process industries.
- Precision Fit & Finish – Manufactured to tight tolerances for leak-proof connections.
- Available in Multiple Grades – 304, 304L, 316, 316L, 321, 347, 904L and others.
- Excellent Formability & Weldability – Suitable for fabrication and onsite installations.
- IBR Approved Options – Certified for high-pressure and boiler applications.
- Wide Range of Sizes & Schedules – Available in SCH10, SCH40, SCH80, and more.
- Multiple End Types – Beveled end, plain end, and custom options.
- Suitable for High Temperature Applications – Maintains strength and structure under stress.
- Ready Stock for Quick Dispatch – Wide inventory of elbows, tees, reducers, caps, and more.
- Trusted by EPCs & Fabricators – Supplied to industries like oil & gas, refineries, power plants.
